Wall Purlins (Pole Barn)


  • Please log in to reply
16 replies to this topic

#1 Tim Booth

Tim Booth

    Advanced Member

  • Members
  • PipPipPip
  • 31 posts
  • LocationMissouri

Posted 18 July 2016 - 01:14 PM

I see a check box for purlins on a roof but I have searched for a way to make them on walls.  Pole Barn for example.  The only way I have figured out to do it so far is to create a "plate" wall and use the move command to attach it to the outside of the 6x6 at the bottom.  I go into the copy menu and create 5-6 copies that randomly space away from the wall, give them offsets in 2' increments.   Then I go into 3D mode and use the move command to set them against the 6x6.  Now I don't see how I get softplan to attach siding to this, so there must be a better way.

Attached Thumbnails

  • purlins.jpg


#2 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,577 posts
  • LocationBrockville, Ontario, Canada

Posted 18 July 2016 - 02:16 PM

Design the wall from scratch and make the actual definition suit the construction (so 2" x 6" horizontal and typically vertical siding). The only downside with that is that each definition has to be tailored to a specific height, as adjusting the height will not automatically stretch the relevant materials.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#3 Derrik Bauer

Derrik Bauer

    Advanced Member

  • Members
  • PipPipPip
  • 256 posts
  • LocationJefferson, IA

Posted 18 July 2016 - 03:23 PM

I created this wall for just this reason:



Same wall, any height you want.

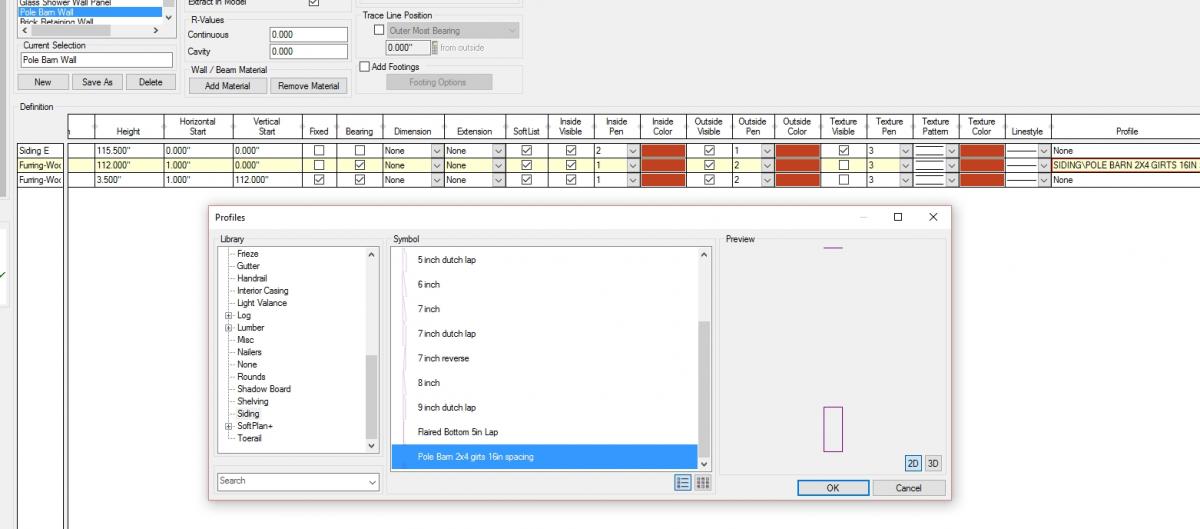

Here is a screenshot of the profile I created to get the purlins (nailers is what we call them) to show up:





  • Ben Ginther, Keith Almond and David Zawadzki like this

#4 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,577 posts
  • LocationBrockville, Ontario, Canada

Posted 18 July 2016 - 08:07 PM

Hadn't thought about a profile, but thinking about it, that solves all the issues. Brilliant idea Derrik.



EDIT: Hadn't realised that the Pole Barn Girts are a standard profile either ...


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#5 Steve and Carla Farnam

Steve and Carla Farnam

    Advanced Member

  • Members
  • PipPipPip
  • 509 posts

Posted 18 July 2016 - 10:11 PM

Tim,



New training video on Softplan+ that walks through Pole Barn construction.

One section takes step by step the creation of pole barn wall definition.



#6 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,577 posts
  • LocationBrockville, Ontario, Canada

Posted 19 July 2016 - 06:42 AM

Had a look at the Pole barn video. That's the way I created mine, although not sure why the airspace was added. However, I prefer Derrik's profile solution. I must experiment with that.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#7 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,577 posts
  • LocationBrockville, Ontario, Canada

Posted 19 July 2016 - 08:48 AM

Perfect .... Thanks Derrik. In my opinion works much easier than Softplan's solution for ease of construction and 3D, and variable heights work well too. However, I don't know how it affects the Softlist, but I don't use it ... I went with 2" x 6" girts.

Attached Thumbnails

  • 2016.07.19_10h44m54s_001.png

Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#8 Tim Booth

Tim Booth

    Advanced Member

  • Members
  • PipPipPip
  • 31 posts
  • LocationMissouri

Posted 22 July 2016 - 07:02 AM

I created this wall for just this reason:



Same wall, any height you want.




Here is a screenshot of the profile I created to get the purlins (nailers is what we call them) to show up:




I am working on learning to define walls, could you show what widths you made each item and did you change any of the default values above your 2nd screenshot?



#9 Derrik Bauer

Derrik Bauer

    Advanced Member

  • Members
  • PipPipPip
  • 256 posts
  • LocationJefferson, IA

Posted 22 July 2016 - 03:42 PM

I honestly don't remember what was standard, and what I created.  I was thinking I created the 2x4 @16" OC profile, but I could be mistaken. Here is a screen shot of the widths of the wall:






Does this help?





#10 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 29 September 2016 - 05:17 PM

finally got it to work.



I agree, it's in the "PROFILE" creation.



toughest wall I ever had to figure out.

and i'm good with defining walls.



btw,

couldn't of done it without  your help.



thanks to all for contributing.



hope I never have to design one for real.


randy

v10 to future 2016+ ;)


#11 John Atchley

John Atchley

    Advanced Member

  • Members
  • PipPipPip
  • 114 posts
  • LocationNW CT

Posted 17 March 2018 - 09:42 AM

I can build the wall but cant figure out how to get the nailers/purlins to repeat 16oc

Attached Thumbnails

  • Wlodar Wall.JPG


#12 John Atchley

John Atchley

    Advanced Member

  • Members
  • PipPipPip
  • 114 posts
  • LocationNW CT

Posted 17 March 2018 - 09:46 AM

And how would I add a vertical 1x2 furring strip that repeats 16oc. Working inside out the wall is meant to have sheathing, vertical 1x3, horizontal 2x3, vertical 1x6 siding, So that sheet of 3/4 in the previous image is meant to be 1x3 vertical. not a sheet of 3/4



#13 John Atchley

John Atchley

    Advanced Member

  • Members
  • PipPipPip
  • 114 posts
  • LocationNW CT

Posted 17 March 2018 - 10:01 AM

OK. I got the 1x3 vertical added. Now just need the horizontals to show every 16 instead of just one at the bottom



#14 John Atchley

John Atchley

    Advanced Member

  • Members
  • PipPipPip
  • 114 posts
  • LocationNW CT

Posted 17 March 2018 - 10:50 AM

Got it.

Attached Thumbnails

  • Wlodar Wall 2.JPG


#15 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,577 posts
  • LocationBrockville, Ontario, Canada

Posted 17 March 2018 - 10:54 AM

John, I think the key is getting the height of the furring wood correct. Since it has a profile it can be full height.



Mine  has a 2" x 10" at the bottom, 2" x 6" at 16" o.c. and a finish 2" x 6" at the top.









EDIT: You replied whilst I was typing ...


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#16 John Atchley

John Atchley

    Advanced Member

  • Members
  • PipPipPip
  • 114 posts
  • LocationNW CT

Posted 17 March 2018 - 11:13 AM

Yes. The problem was not making it full height. I looked at the previous postings and found it. Thx



#17 Daniel Zanoli

Daniel Zanoli

    Advanced Member

  • Members
  • PipPipPip
  • 228 posts
  • LocationNorthern Michigan

Posted 17 March 2018 - 07:24 PM

It would be nice if we could change the roof purlins to a 2x4 like the wall I built.  This is how we do it here in N. Mich.  Note how you start your first two post for proper truss layout. 7'-9 1/2"  Then go to 8' o.c.Framing.jpg Attached File  Wall Detail.pdf   69.2KB   94 downloads
