I know there is probably something simple I am missing here, but how do I angle the top corners of a garage door opening as shown in the attached?

Attached Thumbnails

  • Front of Garage View.jpg

Verlin Klassen

Westman Drafting


#2 Yvon Gonthier

Yvon Gonthier

    Advanced Member

  • Members
  • PipPipPip
  • 1,288 posts
  • LocationOttawa

Posted 24 August 2016 - 11:25 AM

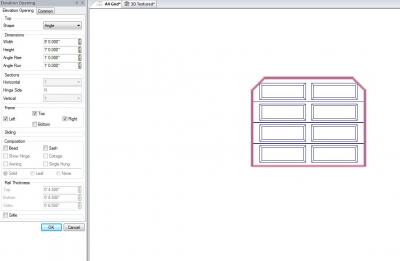

Look in the garage doors under ANGLE TOP. If you need your own, explode the Elevation Opening off one of them to modify for your own or if from scratch, you need an Elevation Opening with Angle for the top shape.

Attached Thumbnails

  • Angle top.JPG


#3 Verlin Klassen

Verlin Klassen

    Advanced Member

  • Members
  • PipPipPip
  • 177 posts
  • LocationBirnie, Manitoba, Canada

Posted 24 August 2016 - 02:17 PM

Thanks Yvonne, you got me on the way again.
