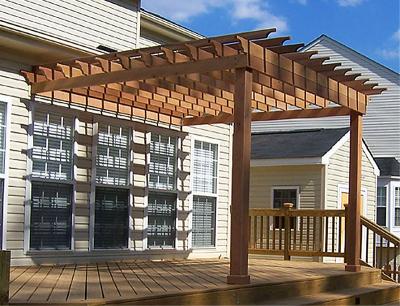

Hi, I need to create something like this image here as my pergola. Do I have to create my own symbols in order to make this?
Thanks !
Samantha
3 replies to this topic
#2
Keith Almond
-
- Members
-
- 5,298 posts
Advanced Member
- LocationBrockville, Ontario, Canada
Posted 14 September 2016 - 03:17 PM

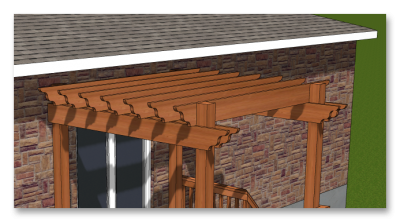

No, this is one I did earlier this year. All done with standard Softplan items.
The 2 ply beams are created with a 5½" gap between the plies in the definition. The "secret" is to use a profile on the ends of the beams and joists.
Keith
There are 10 types of people in this world ....... Those who understand binary, and those who don't.
Softplan user since version 5.5.2.5
www.homehardwarekingston.ca
There are 10 types of people in this world ....... Those who understand binary, and those who don't.
Softplan user since version 5.5.2.5
www.homehardwarekingston.ca
#3
admin
-
- Administrators
-
- 88 posts
Administrator
Posted 14 September 2016 - 03:17 PM
This YouTube video should help get you going: https://youtu.be/D_s-ld8FKgo
Also tagged with one or more of these keywords: pergola, roof, rafters
