Cornerless sliding doors


  • Please log in to reply
16 replies to this topic

#1 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 27 September 2016 - 06:32 PM

Has anyone seen or done the sliding doors that form a corner (Western Windows)?  Trying to figure out how to create those in Softplan but I am not sure what I can do to get rid of the wall at the corner.  To throw the extra wrench in it, all the houses have a Soft list material take-off with it so I can't just fudge it to look correct in 3D.  :unsure:


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#2 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 27 September 2016 - 08:26 PM

... not sure what I can do to get rid of the wall at the corner ...


You could make a matching wall out of NONE materials, that doesn't extract in 3D - that way there won't be any materials to take off. Make the wall join to the standard wall exactly at the end of the patio doors, and use two patio doors, one on each face. So a 6' or whatever patio door, in a 6ft wall. Also make the door the same height as the wall. That way, there really are no wall materials.

You may have to make the doors frameless by creating a specific CUSTOM patio door that has a VERY NARROW frame and edit it's material in the material editor to be NOT visible/NOT displayed.

Just throwing idea's out here.
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#3 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 28 September 2016 - 10:24 AM

How about just stopping the wall. Then make two solid glass cubes, and save them as a symbol called "Western Window" or whatever you want, and attach the costing information etc. for the takeoff directly to the symbol. That way you can keep the takeoff correct, and fudge a frameless door system at the same time. It obviously won't need a wall to sit in, so no issues with hiding it. If you want to fancy up the door, you can easily do that with solids too, and incorporate them in the symbol.
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#4 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 28 September 2016 - 03:06 PM

I didn't think about creating a symbol.  I'm not the best at creating symbols yet.  I was trying to do it with openings.  I tried manipulating a corner window but it did not work correctly.



The doors are very close to face sliding doors but in stead of being face sliding they slide up next to themselvse and go in a pocked in the wall.  Then with no jamb on the one side they open up the entire outside.


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#5 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 28 September 2016 - 05:35 PM

Do you have manufacturers details. If you know exactly what it is going to look like and the size, I'll try and do a quick design for you ... how soon do you need it? because I'm really good at procrastinating these days!


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#6 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 28 September 2016 - 10:22 PM

Hopefully this comes out.  The size that I am using are 12'x8' with the pocket (otherwise I could use the face sliding).  It is the corner thing that is messing me up.  I am hoping to get something to show the builder by Monday.

Attached Files


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#7 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 29 September 2016 - 04:48 AM

Same size on each side of the corner?
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#8 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 29 September 2016 - 06:40 AM

Yes


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#9 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 29 September 2016 - 06:51 AM

Sorry Tom, Just to confirm size when you say 12' x 8' with pocket is that overall 12' including the pocket or 12' door (4 x 3' doors) plus the depth of the pocket.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#10 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 29 September 2016 - 12:17 PM

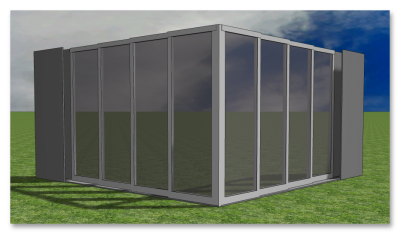

How does this look, Tom?













  • Yvon Gonthier and Wouter van Tiel like this
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#11 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 29 September 2016 - 12:19 PM

That looks pretty spot on.  Did you create an opening or is that a symbol?


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#12 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 29 September 2016 - 12:24 PM

At the moment it's just a 3D model, I'll create it as a symbol. That way you just create the ends of the wall as they will be created with the pockets, and I'll send you the relevant symbols. That way you can use OPEN, PARTLY OPEN or CLOSED symbols and they will show the relevant model in the 3D.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#13 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 29 September 2016 - 07:36 PM

Not really sure how these will transfer between machines. but the enclosed ZIP file has three Softplan symbols and the relevant three linked 3D dwg files. put the dwg files in the C:\SoftPlan\3D\3D Symbols directory ... probably under a subdirectory called Western Windows will work. Put the Softplan symbols wherever you want, and then edit them to link to each of the relevant dwg files. Each window has four distinct textures, that you can edit to whatever suits you. There's the Window Frame on layer "Black", The Pocket on layer "White", the Glass on Layer "Glass", and the Base Track on Layer "Steel", (I'm aware it will probably be black, but needed to give the ability to switch finishes if required) although you can edit them to whatever textures suit you.



Just put them in the drawing as you would any other symbol, and they should work fine. You should be able to show them open, partially open or closed, just by switching the symbols. They seem to work fine for me, but there again, I know what I did with them ...



I haven't worked on the walls and know they will include a pocket, but that wasn't important for this exercise. This is how it works for me ...

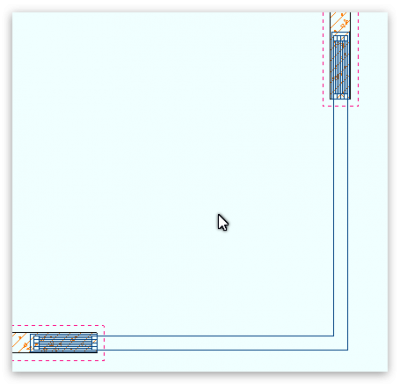

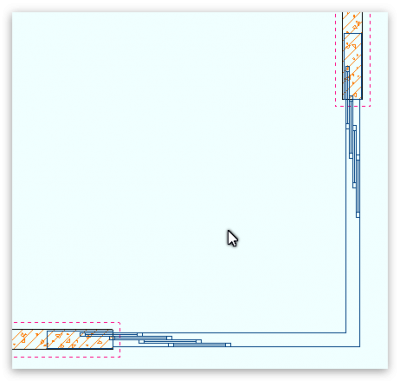

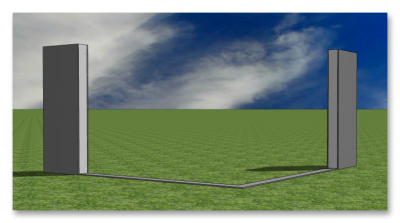

2016.09.29_21h27m54s_001_.png 2016.09.29_21h28m22s_002_.png



2016.09.29_21h28m48s_003_.png 2016.09.29_21h29m07s_004_.png



2016.09.29_21h29m38s_005_.png 2016.09.29_21h30m29s_006_.png



Let me know how you get on.



For anyone who is interested, although there are DWG files included here, ALL of this was created wholly within Softplan. Softplan's 3D model was saved as a DWG file, withiin the 3D window.

Attached Files


  • Rick Kingsbury, Tom Rogers, Bradley Schull and 1 other like this
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#14 Tom Rogers

Tom Rogers

    Advanced Member

  • Members
  • PipPipPip
  • 1,158 posts
  • LocationVilla Rica, Georgia

Posted 29 September 2016 - 08:26 PM

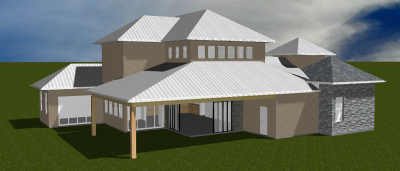

Awesome.  Fitting in good.  2016-09-29.png



Thanks Keith


"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2016+ and beyond
www.residentialproductions.com






#15 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,597 posts
  • LocationBrockville, Ontario, Canada

Posted 30 September 2016 - 04:31 AM

You are very welcome.
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#16 Verlin Klassen

Verlin Klassen

    Advanced Member

  • Members
  • PipPipPip
  • 211 posts
  • LocationBirnie, Manitoba, Canada

Posted 30 September 2016 - 11:06 AM

Out of curiosity Tom, how did you support the corner of the 2nd. floor?


Verlin Klassen

Westman Drafting


#17 STEPHAN PAGE

STEPHAN PAGE

    Advanced Member

  • Members
  • PipPipPip
  • 77 posts
  • LocationMaine

Posted 28 August 2020 - 10:03 AM

Any chance you could send this to me Keith?  I tried clicking on the file here, but I guess it's too old.  I have a customer I working with looking for this exact thing.  I would appreciate it greatly!
