Extend roof ridge ONLY

roof ridge

  • Please log in to reply
6 replies to this topic

#1 Dave Pazyniak

Dave Pazyniak

    Advanced Member

  • Members
  • PipPipPip
  • 342 posts

Posted 18 April 2017 - 05:53 AM

Good Morning,



I need to extend the ridgeline on the rear of the house to reach the main two story roof (see attached), but I do NOT want to extend the overhangs any farther past the second story rear wall of the home.  Is this possible?



Dave

Attached Thumbnails

  • Screenshot (31).png


#2 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 3,925 posts
  • LocationBrockville, Ontario, Canada

Posted 18 April 2017 - 06:12 AM

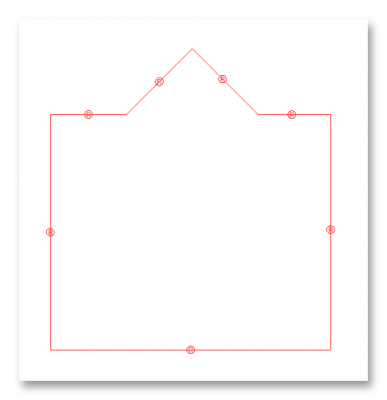

Yes, you have to trace that particular wall edge with 4 edges.



Like this ...






You can't have a gable and an intersect on a single edge, so you need more edges. You nay also fall into the problem that Softplan doesn't like referencing two edges to the same wall, so you may have to break the wall into two parts too.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#3 Dave Pazyniak

Dave Pazyniak

    Advanced Member

  • Members
  • PipPipPip
  • 342 posts

Posted 18 April 2017 - 06:41 AM

Perfect.  Thank you.



#4 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 18 April 2017 - 09:33 AM

try "ADD" roof


randy

v10 to future 2016+ ;)


#5 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 464 posts

Posted 18 April 2017 - 10:10 AM

I usually just "extend" that roof till the ridge intersects and then "draw hole" to get rid of the unwanted down at the eave.


  • Steve and Carla Farnam likes this

#6 Steve and Carla Farnam

Steve and Carla Farnam

    Advanced Member

  • Members
  • PipPipPip
  • 359 posts

Posted 18 April 2017 - 10:32 AM

We use Sams method. Create intersecting roof with vertical plane, extend past ridge connecting point and then back to

dotted line showing valley intersections. Cut hole to eliminate extra roof and uncheck soffit and fascia boxes.



#7 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 18 April 2017 - 01:32 PM

showing extended ridge into sloped roof



used only ADD ROOF.



also playing with rotate texture of the siding and

it got carried away.  do we have a command called

ROTATE top of gable wall ?





the ADDed roof took 4 seconds or less.



left click to enlarge



ADD roof - rotated gable top.JPG


randy

v10 to future 2016+ ;)
