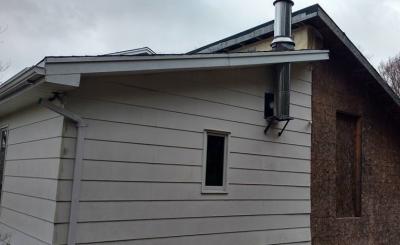

I am trying to re-create this clerestory roof and managed to get this far.



crop.jpg          roof-1.jpg



It's currently drawn as a vertical pitch intersecting roof plane. I need the overhang and fascia, but cannot get it to work. What am I missing??



If there's a better way to achieve this or you have a suggestion please feel free to weigh in.




Softplan 2018


#2 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 464 posts

Posted 15 May 2018 - 06:42 AM

Change the upper one to gable end.



#3 Tracy Brown

Tracy Brown

    Member

  • Members
  • PipPip
  • 17 posts
  • LocationNova Scotia, Canada

Posted 18 June 2018 - 09:26 AM

Change the upper one to gable end.

 Hi Sam. Sorry it took so long to respond. I didn't realize anyone answered this.

I'm not sure why I was stuck on getting that roof to work, but your recommendation solved it...and luckily for me the client was away so the urgency to fix it had subsided til now. Thank you
