Jump to content



Garage Door Jambs

Garage Door Jambs

  • Please log in to reply
9 replies to this topic

#1 Tom McConnell

Tom McConnell

    Advanced Member

  • Members
  • PipPipPip
  • 233 posts
  • LocationSaint Augustine, Florida

Posted 16 April 2015 - 07:59 AM

SP has bucks for Garage Doors but it is not real for florida installations. Is it just florida or does the whole country use Jambs on interior of wall to install Garage Doors tracks?

Attached Thumbnails

  • GDoor.jpg

SoftPlan+ 2018
SP since 2012, AutoCAD since 1994
OS - Windows 10.0 Pro 64 Bit
CPU - AMD FX-8350 8-Core 4.01 GHz
MB - ASUS SABERTOOTH 990FX R2.0
RAM - 16GB DDR3 1866 MHZ
Graphics - ASUS ROG Strix Radeon RX 570 O4G Gaming OC Edition
3 - ASUS MX279H 27 Inch LED Monitors
3Dconnexion Wireless 3D SpaceMouse
3Dconnexion CadMouse
Corsair K95 RGB Cherry MX Brown Keyboard

#2 Heath Foster

Heath Foster

    Advanced Member

  • Members
  • PipPipPip
  • 126 posts

Posted 16 April 2015 - 08:08 AM

In Georgia we use 2x6 on the inside after Sheetrock for jambs

#3 Tom McConnell

Tom McConnell

    Advanced Member

  • Members
  • PipPipPip
  • 233 posts
  • LocationSaint Augustine, Florida

Posted 16 April 2015 - 08:09 AM

Perfect. Florida also. How do you show it in SP?


SoftPlan+ 2018
SP since 2012, AutoCAD since 1994
OS - Windows 10.0 Pro 64 Bit
CPU - AMD FX-8350 8-Core 4.01 GHz
MB - ASUS SABERTOOTH 990FX R2.0
RAM - 16GB DDR3 1866 MHZ
Graphics - ASUS ROG Strix Radeon RX 570 O4G Gaming OC Edition
3 - ASUS MX279H 27 Inch LED Monitors
3Dconnexion Wireless 3D SpaceMouse
3Dconnexion CadMouse
Corsair K95 RGB Cherry MX Brown Keyboard

#4 Heath Foster

Heath Foster

    Advanced Member

  • Members
  • PipPipPip
  • 126 posts

Posted 16 April 2015 - 08:13 AM

Never tried it. Do you need it for softlist, 3d, or just floorplan?

#5 Todd Williard

Todd Williard

    Advanced Member

  • Members
  • PipPipPip
  • 128 posts
  • LocationPA

Posted 16 April 2015 - 08:16 AM

We do the 2x6 jambs prior to drywall in PA. As for showing it, I just use a simple detail.


V11-V2020


#6 Thomas Roman

Thomas Roman

    Advanced Member

  • Members
  • PipPipPip
  • 238 posts
  • LocationSacramento, CA

Posted 16 April 2015 - 08:37 AM

"Garage door bucks" newly added in 2016..

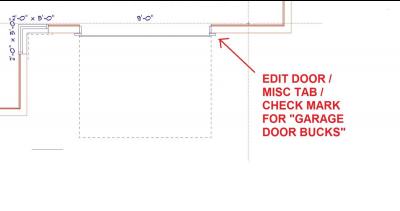

Edit the garage door... under the Miscellaneous TAB there is a check mark for "Garage Door Bucks"

Attached Thumbnails

  • GD 1.jpg


#7 admin

admin

    Administrator

  • Administrators
  • 88 posts

Posted 16 April 2015 - 08:39 AM

I'm not sure if I completely understand the difference in what you are looking for, however the basic controls for how it frames the garage doors is on the misc tab on the opening edit.

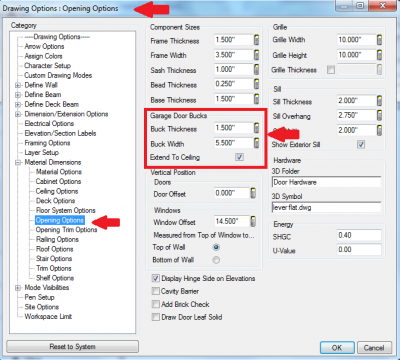

How it behaves and size of buck can be controlled from the Drawing Options->Material Dimensions->Opening Options.








#8 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 3,952 posts
  • LocationBrockville, Ontario, Canada

Posted 16 April 2015 - 08:57 AM

Interesting, In Ontario we also frame the interior of the garage doors like that. That's not what I expected when I read bucks though. I expected this:





Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#9 Tom McConnell

Tom McConnell

    Advanced Member

  • Members
  • PipPipPip
  • 233 posts
  • LocationSaint Augustine, Florida

Posted 16 April 2015 - 09:19 AM

Thanks Thomas R. Perfect.


SoftPlan+ 2018
SP since 2012, AutoCAD since 1994
OS - Windows 10.0 Pro 64 Bit
CPU - AMD FX-8350 8-Core 4.01 GHz
MB - ASUS SABERTOOTH 990FX R2.0
RAM - 16GB DDR3 1866 MHZ
Graphics - ASUS ROG Strix Radeon RX 570 O4G Gaming OC Edition
3 - ASUS MX279H 27 Inch LED Monitors
3Dconnexion Wireless 3D SpaceMouse
3Dconnexion CadMouse
Corsair K95 RGB Cherry MX Brown Keyboard

#10 Thomas Roman

Thomas Roman

    Advanced Member

  • Members
  • PipPipPip
  • 238 posts
  • LocationSacramento, CA

Posted 16 April 2015 - 09:35 AM

great... and as Admin. points out, you can define the buck size and type in the Drawing Options..







Also tagged with one or more of these keywords: Garage Door, Jambs

0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
