Gable end vault


  • Please log in to reply
16 replies to this topic

#1 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 119 posts
  • LocationSaskatchewan

Posted 21 August 2015 - 03:46 PM

Hi,

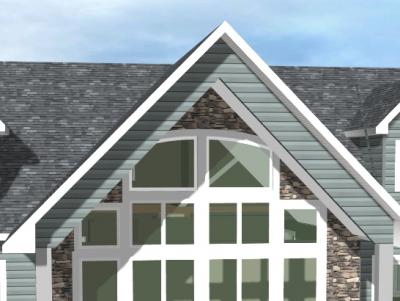

How do you draw a vaulted gable? I have used two walls and rake the bottom of both, but surely there is a better way. It would also work to edit an arch if we could make an arch like that. What are your ideas?

Attached Thumbnails

  • 2.jpg


#2 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 21 August 2015 - 06:05 PM

ben



pardon my ignorance



could you be a little more specific >



what exactly is a "vaulted gable"


randy

v10 to future 2016+ ;)


#3 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 574 posts

Posted 21 August 2015 - 06:30 PM

Randy,



He's looking to do a covered deck/patio with a scissor truss.  There's no way that I know to make the gable follow the ceiling line.  I gave up trying to do them long ago



#4 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 119 posts
  • LocationSaskatchewan

Posted 22 August 2015 - 07:13 AM

Thanks,

  Trusses will follow the ceiling, but gables will not. Does anyone know how to make an arch as a triangle?

Ben



#5 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 22 August 2015 - 06:50 PM

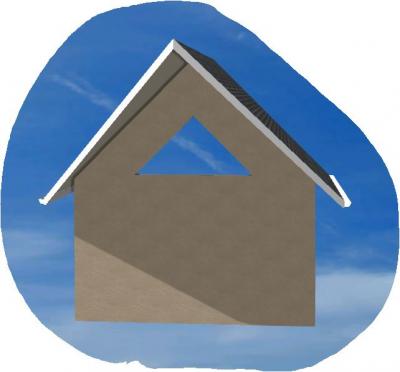

if this is what your want.



draw the arch with 3 lines,

2 diagonals and one horizontal.

go into system library / elev opening / arch

and do a "one step" and draw a box around the

arch drawn from lines.

give it a  name.

than go to OPENINGS library / arch

and make it an arch opening.



click to enlarge image



arch triangular.JPG


randy

v10 to future 2016+ ;)


#6 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 574 posts

Posted 22 August 2015 - 07:40 PM

http://nycoconstruct...overed-Deck.jpg



I assume this is what the original question was about.  I've not ever been able to figure out a way to do this in softplan and show in 3D.  I either draw it with lines on the elevations or do a wall out on the end with an arch.   It would be nice if the gable end would follow the ceiling.



#7 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 119 posts
  • LocationSaskatchewan

Posted 22 August 2015 - 08:10 PM

Randy,



   What happens when you edit and change it to twice that size?

bg



#8 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 119 posts
  • LocationSaskatchewan

Posted 22 August 2015 - 09:50 PM

Got it!    Thanks.

Attached Thumbnails

  • 3.jpg


#9 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 23 August 2015 - 01:05 PM

ben,

did you want an arch (no glazing)

or

a window (with glazing)



a quick and easy way is to use >



window / specialty / trapezoid



NOTE: the trapezoid windows

has an "auto top" that slopes to the

pitch of the roff that it's "DIRECTLY" under as noted in illustration





note: you can have glazing in this trapezoid window or no glazing.



click to enlarge image



window polygon top auto slope to roof pitch.JPG


randy

v10 to future 2016+ ;)


#10 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 574 posts

Posted 23 August 2015 - 02:20 PM

Randy...you always think outside the box!!!   That would actually be an easy way to do that...put in a trapezoid...fit to ceiling...then turn the glass off so all you are left with is opening and trim if wanted...How come I never think of these kinds of things???  :)



#11 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 23 August 2015 - 03:12 PM

sam,



could it be you haven't really returned from Woodstock ?

of course i'm kidding sam,  you come up with lots of great tips.



and you all should look into creating an "auto slope top" / "trapezoid" top

on openings /  doors and windows.


randy

v10 to future 2016+ ;)


#12 Anthony Wielemaker

Anthony Wielemaker

    Advanced Member

  • Members
  • PipPipPip
  • 75 posts
  • LocationGreely, Ontario

Posted 13 October 2016 - 01:46 PM

I know this is an old thread but I'm hoping Randy or someone else can help me out.  I've used Randys method with the trap window and vaulted gable end and it works famously...except it leaves a thin strip at the bottom that I can't seem to get rid of, ideas anyone?



2016-10-13 15_42_54-SoftPlan 2016 - 16-09 Hyndman Residence.png



2016-10-13 15_45_08-SoftPlan 2016 - 16-09 Hyndman Residence.png



#13 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 574 posts

Posted 13 October 2016 - 02:50 PM

Check to make sure it doesn't have a "sill" or exterior trim



#14 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,553 posts
  • LocationBrockville, Ontario, Canada

Posted 13 October 2016 - 03:15 PM

Make the "window" 1/8" deeper than the wall ...


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#15 Anthony Wielemaker

Anthony Wielemaker

    Advanced Member

  • Members
  • PipPipPip
  • 75 posts
  • LocationGreely, Ontario

Posted 13 October 2016 - 04:05 PM

Thanks Keith.



#16 Tom McConnell

Tom McConnell

    Advanced Member

  • Members
  • PipPipPip
  • 259 posts
  • LocationSaint Augustine, Florida

Posted 07 July 2021 - 09:42 AM

Where do I turn off the "Glazing" for the trapezoid window?


SoftPlan+ 2021
SP since 2012, AutoCAD since 1994
OS - Windows 10.0 Pro 64 Bit
CPU - AMD RYZEN 9 3900X 12-CORE
MB - ASUS ROG Strix X570-E
RAM - CORSAIR VENGEANCE RGB PRO 32GB DDR4
Graphics - ASUS ROG Strix Radeon RX 570 O4G Gaming OC Edition
3 - ASUS MX279H 27 Inch LED Monitors
3Dconnexion CadMouse
Corsair K95 RGB Cherry MX Brown Keyboard

#17 Joseph Smith

Joseph Smith

    Advanced Member

  • Members
  • PipPipPip
  • 664 posts
  • LocationWI

Posted 07 July 2021 - 09:51 AM

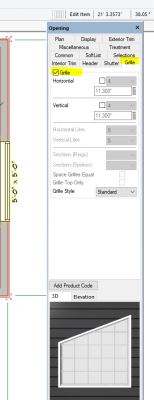

same as other windows.





only caveat i supose is if you created the opening using the line method, e.g. elevation opening then opening and used lines to create your grills then you'll be unable to remove w/o creating another elevation opening w/o those grid lines. (i use this method for super strange custom units)





i seen a randy post at the beginning of this....he is missed!  RIP





SORRY YOU SAID GLAZING...THOUGHT IT WAS GRILLES

Attached Thumbnails

  • Capture.PNG
