Posted 28 January 2015 - 05:41 PM

Again,

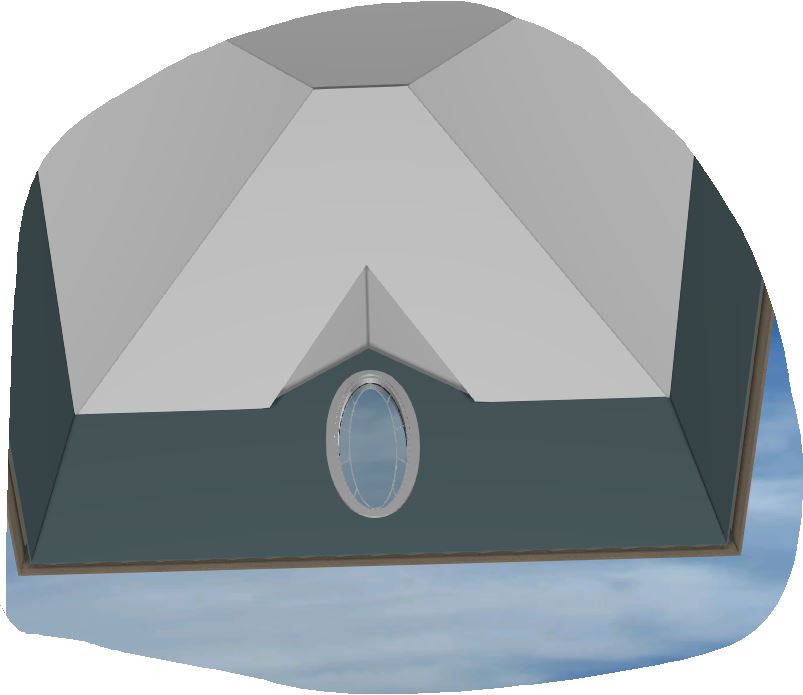

  How do you draw a vaulted ceiling as I have tried to portray in the attached jpg? It is easy to add a false gable on a roof, but how do you do the ceiling?

Thanks again,

Ben

Attached Thumbnails

  • 1.jpg


#2 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 28 January 2015 - 07:53 PM

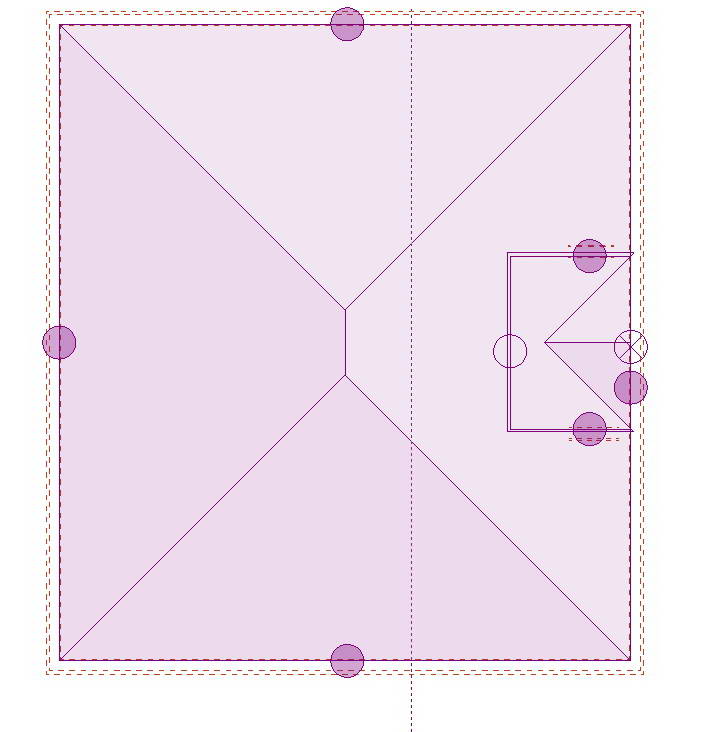

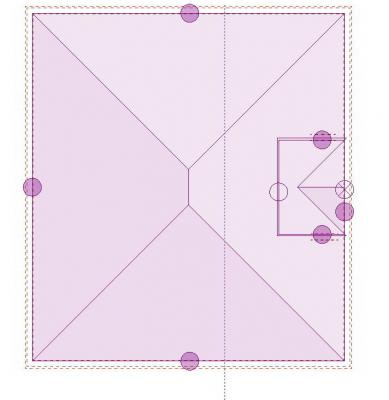

the easy cheaters way is to draw the hip ceiling and cut a hole in the ceiling where the false

gable is (or use auto hole).  than edit the surface of the sheathing in the false gable to what ever you want.

remember you can copy and paste one of the other textures in the room to be on the sheathing.



tip: fit wall to roof works great in this situation as you can see

to put the wall up into the gable.

jpg ceiling in hip false gable.JPG


randy

v10 to future 2016+ ;)


#3 Chris Stewart

Chris Stewart

    Advanced Member

  • Banned
  • PipPipPip
  • 238 posts
  • LocationTexas

Posted 28 January 2015 - 10:15 PM

You need to draw two walls which represent the width of the small gable and will allow you to generate that piece.

Then you can hide those two walls and trace hole in the main ceiling and the small ceiling to get ride of the bits you do not want.





All comments are my opinion only and may or may not be correct
-Chris

#4 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 121 posts
  • LocationSaskatchewan

Posted 29 January 2015 - 11:48 AM

Thank you for your response. That worked very well!

Kind regards,

Ben



#5 Chris Stewart

Chris Stewart

    Advanced Member

  • Banned
  • PipPipPip
  • 238 posts
  • LocationTexas

Posted 29 January 2015 - 11:57 AM

It is currently a bit confusing because you can put a "False Gable" on the outside without any side to side reference points



but there is not a corresponding ability to create a matching "False Gable" on the ceiling below.


All comments are my opinion only and may or may not be correct
-Chris

#6 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 121 posts
  • LocationSaskatchewan

Posted 29 January 2015 - 01:06 PM

That is right! We'll have to add that to the wish list.
