Auto Label Command
Added |
|

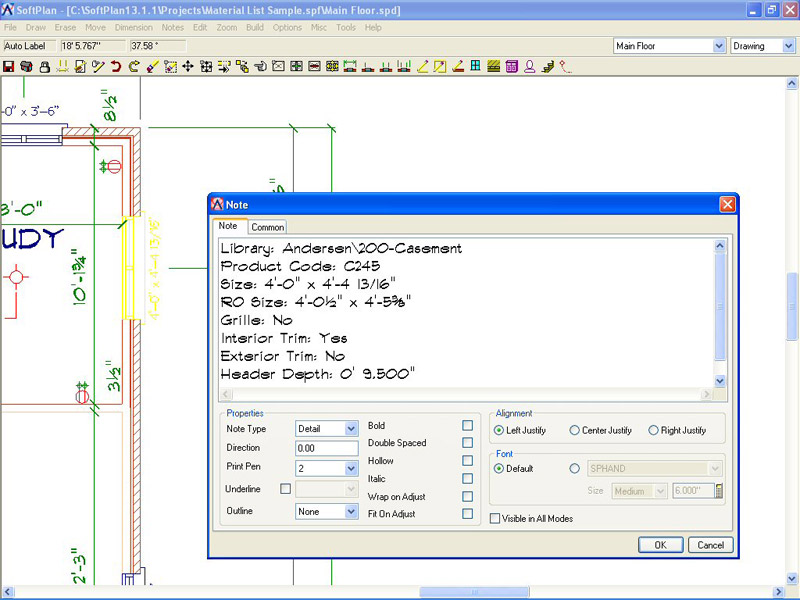

The Auto Label command for Notes can be
used to select an object on the plan and automatically display specific data
for that object in a Detail note. It will display information such as the
object type, dimensions and other relevant settings. This is the same
information that displays when items are selected in SoftPlan
reView. |
| |
|
| |
|
| |
 |
| |
|
| |
|
| |
Capsule Outline Type
Added |
|
The Outline option on the Note dialog
allows a capsule shape to be selected to surround a note. |
|
|
| |
 |
| |
|
| |
|
|
Circle Outline Type
Added |
| |
The Outline option on the Note dialog
allows a circle shape to be selected to surround a note. |
| |
|
|
 |
| |
|
| |
|
|
Cloud (Revision) Outline Type
Added |
| |
The Outline option on the Note dialog
allows a cloud shape to be selected to surround a note. |
|
|
| |
|
| |
|
| |
|
|
Ellipse Outline Type
Added |
| |
The Outline option on the Note dialog
allows an ellipse shape to be selected to surround a note. |
| |
|
| |
 |
| |
|
|
|
|
Fit on Adjust Option
Added |
|

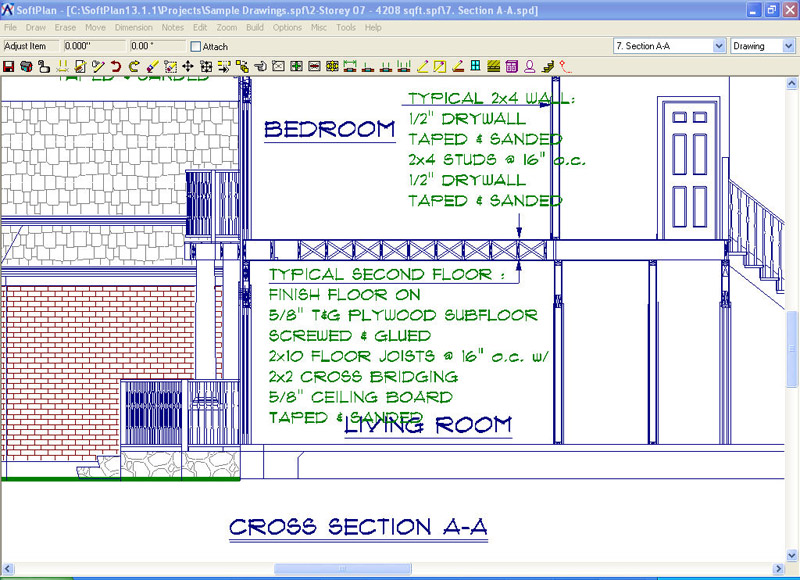

With the Fit to Adjust
option selected for a Note, the text of the note will change size to
incorporate the note on the same amount of lines as it was
typed.
|
| |
|
| |
|
| |
 |
| |
|
| |
|
| |
Hexagon Outline Type
Added |
| |
The Outline option on the Note dialog
allows a hexagon shape to be selected to surround a note. |
| |
|
| |
 |
| |
|
| |
|
| |
Octagon Outline Type
Added |
| |
The Outline option on the Note dialog
allows an octagon shape to be selected to surround a note. |
| |
|
| |
 |
| |
|
| |
|
| |
Spell Check Displays Misspelled
Word by Highlighting the Incorrect Word Within the Context it Is
Used |
| |
When using Spell Check on a
drawing, the misspelled words can be easily located in the Note where
the word appears is highlighted.
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Wrap on Adjust
Added |
| |
With the ‘Wrap to Adjust’ option
selected for a Note, text within the context of the note can be spaced
out on different lines than what was typed according to the adjustment
of the Note. The text will remain the same size when the Note is
adjusted.
|
| |
|
| |
 |
