tapered soffits?

soffits

  • Please log in to reply
26 replies to this topic

#1 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 15 January 2015 - 05:26 PM

I have a client that wants huge overhangs (7 ft)  around the perimeter that taper from 16" (heel ht) at the wall line up and out to 6" at the fascia.

The roof is a shed with a very low slope.

Any ideas how to do this? (Just the soffits, I got the shed roof.)

taper soffit.JPG



#2 Chris Stewart

Chris Stewart

    Advanced Member

  • Banned
  • PipPipPip
  • 238 posts
  • LocationTexas

Posted 15 January 2015 - 10:31 PM

When I was in Lucerne I saw a civic center that does that:



http://www.archiexpo...16-1425197.html



I suppose you could make metal flanges. (hopefully he is not wanting it to be cost effective as well).



Probably plywood could also span that particularly with a light roof.

Sounds like a question to ask an engineer.


All comments are my opinion only and may or may not be correct
-Chris

#3 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 16 January 2015 - 12:12 AM

Ah, sorry, I meant how would one do the SP model?

Thanks for the construction ideas tho.

We will be undercutting the 2 x 12 joists for the shape and I can probably do an end contour on them but soffits don't do this in SP

I may try ceilings.

Glenn



#4 Rod Leger

Rod Leger

    Advanced Member

  • Members
  • PipPipPip
  • 31 posts

Posted 16 January 2015 - 06:22 AM

Glenn,

How about using beams with a profile for the ends?

Beams can be tilted/sloped


Rod



Softplan 12 - 2012

Softlist

Review



Windows 7 Ultimate

I7 2600K

16GB Ram

2- 23" monitors








#5 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 16 January 2015 - 10:35 AM

Thanks for the reply Rod

The thing I can't seem to think how to do is the soffit.

That is-* the covering of the underside of the structural overhang.



#6 Thomas Roman

Thomas Roman

    Advanced Member

  • Members
  • PipPipPip
  • 258 posts
  • LocationSacramento, CA

Posted 16 January 2015 - 11:00 AM

perhaps play with a custom profile as a FRIEZE BOARD trim...



or perhaps use a custom profile with DRAW PROFILE...



#7 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 16 January 2015 - 12:55 PM

Hmm, good lateral thinking.

If I understand, do the entire perimeter overhang as a custom profile? (wall, frieze, or gutter)



I'll give that a try. I haven't played with profiles much but it sounds like it has potential.

I was about to resurrect my past (and very rusty) Sketchup skills and do a soffit model there for export but that sounded like too much of a relearning curve.

Thanks Tom.



#8 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 16 January 2015 - 09:39 PM

if working on a FLAT soffit pretty easy by drawing a custom profile in the banding library.



than offset the banding as needed to fit under the soffit



for a sloped soffit,  not sure what the best way would be



i think toms thinking of creating a custom frieze profile might be one way.

didn't try that.



glenn mentions experimenting with "ceilings".  also might work.



time for some experimenting



i tried doing it with a wall with a custom profile siding and had some issues



tom mentions a frieze,  haven't tried that one



this is a good one. not sure it's as easy as it seem.

can't wait to see all the solutions.


randy

v10 to future 2016+ ;)


#9 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 16 January 2015 - 10:27 PM

I tried a few ideas but the roof slope screws me up .

I'm just importing a sketchup soffit model I did from the dxf model. (Then erased the model)

I'm just about to make a 3d symbol.

I'll post the results.

It didn't take as long as i thought in SU.

Proud that I remembered a lot of SU commands.

Attached Thumbnails

  • soffit.JPG


#10 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 16 January 2015 - 10:56 PM

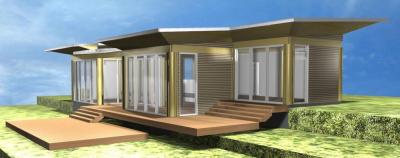

barry soffit.jpg barry soffit2.jpg

Not perfect but more or less like the owner wanted.



#11 Gary Hood

Gary Hood

    Advanced Member

  • Members
  • PipPipPip
  • 59 posts
  • LocationParksville B.C.

Posted 17 January 2015 - 11:54 AM

I like it Glenn! Does this design also have the roof joists showing underneath?



#12 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 17 January 2015 - 11:56 AM

No, they want clear wood on EVERYTHING. Inside and out. I think it's going to be too much but it's their house.

I think I have the soffits coming down too far and will make the adjustment.



#13 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 17 January 2015 - 12:51 PM

barry soffit.jpg RIGHT ELEV.JPG

This is More like it.

Thanks for the ideas guys. Have a great weekend.



#14 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 17 January 2015 - 01:06 PM

PS. any ideas why this soffit shows in 3d but not in sections?



#15 MARK PETRI

MARK PETRI

    Advanced Member

  • Members
  • PipPipPip
  • 736 posts
  • LocationEvergreen, CO

Posted 17 January 2015 - 07:20 PM

You need to check the symbol to show in section and elevation in the symbol edit menu.

Mark Petri

Petri Building and Design




#16 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 17 January 2015 - 07:20 PM

how about doing the tapered soffits with "roof planes"


randy

v10 to future 2016+ ;)


#17 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 17 January 2015 - 07:34 PM

Mark, I edited the symbol on the floor plan and on the main page it's showing checked in "Visible in all modes" and in "common" Softview is checked.

Did I miss something at the creation of the symbol?



#18 MARK PETRI

MARK PETRI

    Advanced Member

  • Members
  • PipPipPip
  • 736 posts
  • LocationEvergreen, CO

Posted 17 January 2015 - 10:06 PM

Yes, go into the symbols library for the drawing, and click to edit the symbol, and make sure visible in sections is checked.

Mark Petri

Petri Building and Design




#19 MARK PETRI

MARK PETRI

    Advanced Member

  • Members
  • PipPipPip
  • 736 posts
  • LocationEvergreen, CO

Posted 17 January 2015 - 10:07 PM

At least that is what I suspect is missing.

Mark Petri

Petri Building and Design




#20 Glenn Mitchell

Glenn Mitchell

    Advanced Member

  • Members
  • PipPipPip
  • 60 posts
  • LocationComox BC

Posted 18 January 2015 - 01:00 AM

Yup that was it. Thanks Mark

I had to do it on the Drawing Options file which confused me for a minute or two.

Glenn


  • MARK PETRI likes this
