Hi,

  I want to use scissor trusses over a covered deck. How do I draw the gable? I have tried using a separate wall but I cannot rake the bottom and fit to roof. Both the "Rake Bottom - Position" and the "Wall Height - Multi Height" stay the same. They do not change when you try to edit them. Any ideas?

Thanks,

Ben



#2 Yvon Gonthier

Yvon Gonthier

    Advanced Member

  • Members
  • PipPipPip
  • 1,288 posts
  • LocationOttawa

Posted 28 January 2015 - 04:44 PM

You have to draw 2 walls because you can only slope the bottom in one direction, it won't adjust as a "V" on the bottom. By drawings 2 walls end to end, you can slope the bottom of the 2 walls individually up toward the peak. Use ceiling (gable) to create your soffit.



#3 Yvon Gonthier

Yvon Gonthier

    Advanced Member

  • Members
  • PipPipPip
  • 1,288 posts
  • LocationOttawa

Posted 28 January 2015 - 04:47 PM

Or, if you want only one wall, create a triangular arch (blank) and insert to fit at the bottom of the wall.



#4 Ben Ginther

Ben Ginther

    Advanced Member

  • Members
  • PipPipPip
  • 121 posts
  • LocationSaskatchewan

Posted 29 January 2015 - 01:04 PM

Thank you!  Although I have successfully done this in the past, I could not edit the two walls this time. I tried shutting down and restarting SoftPlan but still no luck. However, the next day all works well.

Thanx again.

Ben



#5 randolph cohn

randolph cohn

    Advanced Member

  • Members
  • PipPipPip
  • 869 posts
  • Locationmarin county - california

Posted 29 January 2015 - 02:56 PM

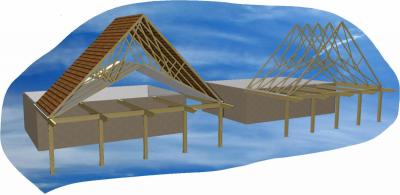

the easiest way to draw a scissor truss is to draw a cathedral ceiling to create the sloped lower chords

and of course the roof creates the sloped upper chords.jpg scissor truss over terrace.JPG


randy

v10 to future 2016+ ;)


#6 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,574 posts
  • LocationBrockville, Ontario, Canada

Posted 29 January 2015 - 03:46 PM

I think the issue was more the profile of the end wall than the trusses themselves randy. The roof gable still wants to be flat bottomed!


Keith
