Where can I find annotation symbols?


  • Please log in to reply
11 replies to this topic

#1 Nicholas Colantuono

Nicholas Colantuono

    Advanced Member

  • Members
  • PipPipPip
  • 81 posts

Posted 30 August 2021 - 07:30 AM

I'm looking to add things lik spot elevation symbols, elevation tag symbol ect.



Is there a place where I can find and add these into my drawing?



Thanks



#2 Mark Petri

Mark Petri

    Advanced Member

  • Members
  • PipPipPip
  • 1,190 posts
  • LocationEvergreen, CO

Posted 30 August 2021 - 09:22 AM

Open an elevation or section and you will see a choice between model and annotated. Choose annotated. Then you can add the elevation markers and notes. You can turn off automatic updates on the markers there as well.


Mark Petri

Petri Building and Design




#3 Nicholas Colantuono

Nicholas Colantuono

    Advanced Member

  • Members
  • PipPipPip
  • 81 posts

Posted 30 August 2021 - 09:55 AM

I am in annotated view, trying to add in something like this:









possible?









#4 Nicholas Colantuono

Nicholas Colantuono

    Advanced Member

  • Members
  • PipPipPip
  • 81 posts

Posted 30 August 2021 - 01:07 PM

Sorry not sure the image posted last time, I'm looking to add in an elevation tag like this

Attached Thumbnails

  • tag.JPG


#5 Frank Kalata

Frank Kalata

    Newbie

  • Members
  • Pip
  • 1 posts

Posted 27 December 2021 - 12:13 AM

Were you able to figure this out Salvatore?



#6 Mark Petri

Mark Petri

    Advanced Member

  • Members
  • PipPipPip
  • 1,190 posts
  • LocationEvergreen, CO

Posted 29 December 2021 - 09:57 PM

You can draw symbols, notes, speed notes, and dimensions.


Mark Petri

Petri Building and Design




#7 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 31 December 2021 - 06:27 AM

Great question, because I am a new SP user and (migrating over from Chief Architect) I thought things like framing references and level lines would come pre drawn with package.  So in this respect Chief Architect is light years ahead of Softplan.  But, you can create your own symbols, and I created them for elevation references shown in 2D, like the framing reference for the 1st floor sub-floor as being 0'-11 1/2" along with a framing reference marker to go with it.
But...
After I saved the symbol(s), every time I go to place them half of the text disappears.  Its been two days now trying to get an answer from technical support as to why this happens.  Everything shows up in the library preview, and everything shows up on the first placement click of the mouse.  But after the second mouse click to set the orientation, a dialog box comes up.  At this point the symbol is still intact.  As soon as the dialog box is closed, all of the text above the horizontal line of the marker disappears.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#8 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,819 posts
  • LocationBrockville, Ontario, Canada

Posted 31 December 2021 - 09:19 AM

Did you set ATTRIBUTES for the text?


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#9 David Zawadzki

David Zawadzki

    Advanced Member

  • Members
  • PipPipPip
  • 437 posts
  • LocationBoise, Idaho

Posted 31 December 2021 - 10:33 AM



Great question, because I am a new SP user and (migrating over from Chief Architect) I thought things like framing references and level lines would come pre drawn with package.  So in this respect Chief Architect is light years ahead of Softplan.  But, you can create your own symbols, and I created them for elevation references shown in 2D, like the framing reference for the 1st floor sub-floor as being 0'-11 1/2" along with a framing reference marker to go with it.
But...
After I saved the symbol(s), every time I go to place them half of the text disappears.  Its been two days now trying to get an answer from technical support as to why this happens.  Everything shows up in the library preview, and everything shows up on the first placement click of the mouse.  But after the second mouse click to set the orientation, a dialog box comes up.  At this point the symbol is still intact.  As soon as the dialog box is closed, all of the text above the horizontal line of the marker disappears.



Can you snag and post some examples of what you are having trouble with? I am not quite sure what you are having trouble with... if you are in annotated mode, aren't the "level lines" generated automatically?

Award winning Design+Builder with over 40 years of construction experience. Homes built in Michigan, Utah and Idaho.

Construction projects in CA, AZ, NV, ID, UT, NE, MO, NM, FL, GA, NY, and MI.

https://idahocustomhomes.weebly.com/

Twinmotion 2022, Autocad, SoftPlan 2022, Solidbuilder, Chief Architect X13, Sketchup, 3D Home Architect, etc.

CyberPowerPC Syber Forti SFG9EX Gaming Desktop Computer, Intel Core i9-9900K 3.6GHz, 32GB RAM, 3TB HDD + 1TB SSD, NVIDIA GeForce RTX 3070 10GB, Windows 10 Pro.

Disclaimer: I'm not saying I'm Superman. All I am saying is no one has seen Superman and me in the same room together.<p>

Softplan user since 1989


#10 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 31 December 2021 - 03:27 PM

Did you set ATTRIBUTES for the text?

I don't even know what an Attribute is.  These are the first symbols I have tried to create.  But I will look into it.

Thanks.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#11 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 31 December 2021 - 03:28 PM

&nbsp; &nbsp;

Can you snag and post some examples of what you are having trouble with? I am not quite sure what you are having trouble with... if you are in annotated mode, aren't the "level lines" generated automatically?

I will look into that.  I thought the datum markers were only generated in Elevation Views, not plan views.
Thanks.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#12 Mark Petri

Mark Petri

    Advanced Member

  • Members
  • PipPipPip
  • 1,190 posts
  • LocationEvergreen, CO

Posted 03 January 2022 - 05:28 PM

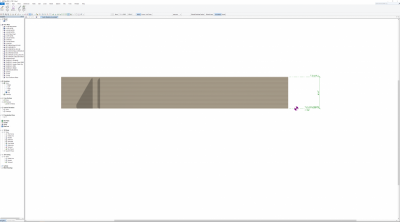

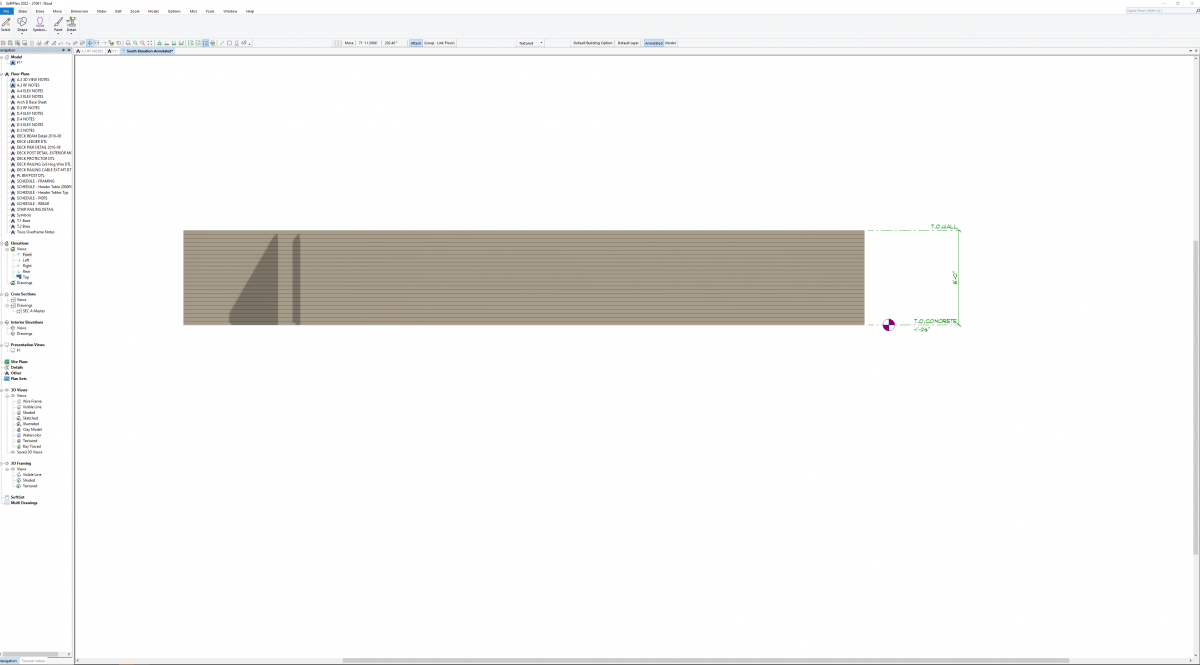

I did this with a plan I am just starting to work out. I can easily add my elevation marker and notes. Make sure you have the elevation showing in annotated view. Look near the top of my screenshot and you'll see it highlighted.

Attached Thumbnails

  • SP Annotated Elevation.png

Mark Petri

Petri Building and Design
