Vaulted flat ceiling


  • Please log in to reply
7 replies to this topic

#1 gary wood

gary wood

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts

Posted 13 November 2021 - 08:34 AM

Trying to draw a vaulted flat ceiling. Basically raise collar ties up and have sheetrock on collar ties and lower part of rafter . Help please



#2 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 661 posts

Posted 13 November 2021 - 08:36 AM

Double hip ceiling edges on both sides. Set one pitch to match your rafter pitch then the other to horizontal
  • David Zawadzki likes this

#3 Sam Morgan

Sam Morgan

    Advanced Member

  • Members
  • PipPipPip
  • 661 posts

Posted 13 November 2021 - 08:38 AM

This what you're after?

Attached Thumbnails

  • Jaeger Garage07.jpg


#4 gary wood

gary wood

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts

Posted 13 November 2021 - 09:13 AM

I have a 3 pitch gable and want flat ceiling at 9'6" with gables rocked to that point. Rafters below raised flat being to be sheetrocked also. No horizontal Soffet or tray



#5 Joseph Smith

Joseph Smith

    Advanced Member

  • Members
  • PipPipPip
  • 760 posts
  • LocationWI

Posted 17 November 2021 - 09:00 AM

sketch would help.  are we getting close?

Attached Thumbnails

  • gr.png
  • q3a.png

Joseph A. Smith

http://granitedesigngroup.com




#6 James Carswell

James Carswell

    Newbie

  • Members
  • Pip
  • 1 posts

Posted 23 January 2022 - 03:26 PM

I'm having similar issues...  Trying for a 15" pitch on each of the 4 sides, with a flat rectangle in the top center.  I can get two sides with the double hip, showing pitch at the side and flat on top.  Can even get to pitch on two opposing sides and flat on top.  Cannot get all 4 sides pitched. French style great room matching roof pitch but using collar ties for flat roof section.  Will then add faux (or actual) wood beams for accents.  Any ideas?



#7 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,818 posts
  • LocationBrockville, Ontario, Canada

Posted 23 January 2022 - 07:26 PM

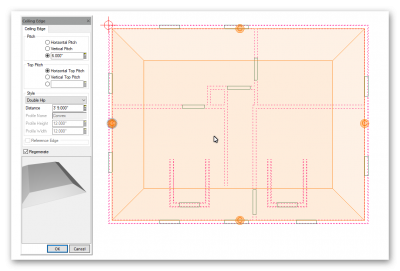

You should be able to make all 4 sides double hipped, with a 6 (or whatever) lower pitch for a given distance, and a Horizontal Top Pitch.





Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#8 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 26 January 2022 - 06:50 AM

Trying to draw a vaulted flat ceiling. Basically raise collar ties up and have sheetrock on collar ties and lower part of rafter . Help please

The raised ceiling joists don't necessarily replace the collar ties....you still may need both. Figure R802.4.5 (NY 2020 Residential Code) has the ceiling joist/Ridge height requirements.  Or just go with an engineered design.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.
