Rafter Seat Cut


  • Please log in to reply
5 replies to this topic

#1 gary wood

gary wood

    Advanced Member

  • Members
  • PipPipPip
  • 52 posts

Posted 21 November 2021 - 04:40 PM

I have a shed roof that the rafter seat cut is too log leaving the rafter at bearing wall too shallow. I've change seat cut and heel height and I can't get it to work. I'd like the seat cut to start at interior of wall.

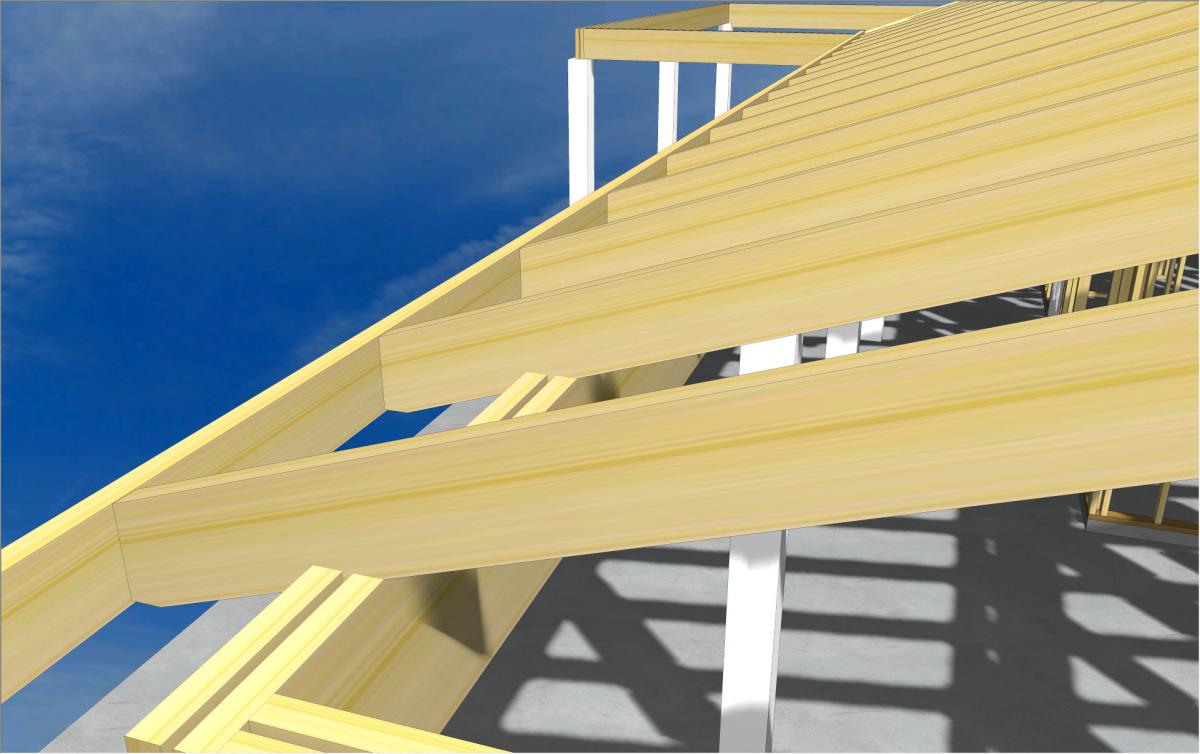

Attached Thumbnails

  • Section Rafter.jpg


#2 Mark Petri

Mark Petri

    Advanced Member

  • Members
  • PipPipPip
  • 1,141 posts
  • LocationEvergreen, CO

Posted 22 November 2021 - 11:25 AM

You may have to do a clean up or regeneration on each rafter or the rafter polygon. Also make sure the roof cleaned up the way you want and regenerate that. If you don't have too many things customized on offsets, etc. using the global cleanup button may help as well. Warning - I do find it likes to clean up things that are anchored and that cleanup is unchecked on. So, be sure to double-check your model if you use that tool.


Mark Petri

Petri Building and Design




#3 gary wood

gary wood

    Advanced Member

  • Members
  • PipPipPip
  • 52 posts

Posted 22 November 2021 - 03:05 PM

I am trying to adjust seat cut and heel height and it won't allow it??



#4 gary wood

gary wood

    Advanced Member

  • Members
  • PipPipPip
  • 52 posts

Posted 22 November 2021 - 03:27 PM

   This is what I have and want seat cut shorter and that would make heel height higher. If I change those dimensions the rafter gets shorter and comes to a point

Attached Thumbnails

  • Screenshot 2021-11-22 162023.png


#5 Mark Petri

Mark Petri

    Advanced Member

  • Members
  • PipPipPip
  • 1,141 posts
  • LocationEvergreen, CO

Posted 22 November 2021 - 04:51 PM

Try checking and unchecking energy heel on the eave and see if that does anything. Also, the fascia drives the cut of the rafter (kind of goofy program behavior), so try changing that if no success otherwise. From the last picture it appears that is what is causing the odd shape of the rafter.


Mark Petri

Petri Building and Design




#6 Don Gibbons

Don Gibbons

    Advanced Member

  • Members
  • PipPipPip
  • 362 posts

Posted 22 November 2021 - 06:54 PM

Gary, I look at your first picture and it looks like the roof and the rafter are 2 different pitches, is that right?
