Beam Bearing Length


  • Please log in to reply
6 replies to this topic

#1 Kris Marteinsson

Kris Marteinsson

    Member

  • Members
  • PipPip
  • 21 posts
  • LocationSalmon Arm, BC

Posted 12 January 2022 - 11:38 AM

I have a beam which should sit on the 2x6 wall for the full width of the wall. The beam end seems to snap to about 4 1/2" on the wall no matter what I do. I've searched for some setting which controls the length of the beam bearing but no luck. I've turned off cleanup but the beam won't cooperate. Any method of dealing with this?

Attached Thumbnails

  • Beam Bearing Length.jpg


#2 Bryan Schultz

Bryan Schultz

    Advanced Member

  • Members
  • PipPipPip
  • 51 posts

Posted 12 January 2022 - 11:40 AM

Did you try setting the end options?

Right click the beam - end options - set top/bottom to ????



#3 Kris Marteinsson

Kris Marteinsson

    Member

  • Members
  • PipPip
  • 21 posts
  • LocationSalmon Arm, BC

Posted 12 January 2022 - 12:05 PM

Yes, that is indeed the setting involved with this. The help says this setting sets the depth the beam projects into a concrete or concrete block wall. Since my beam is resting in a wood wall, the projection is measured from the outside surface of the wall and has no relation to the part of the wall which is defined as bearing. Some logic involved here but not what I would expect. Thanks.



#4 Jeremy Plum

Jeremy Plum

    Advanced Member

  • Members
  • PipPipPip
  • 100 posts

Posted 12 January 2022 - 12:28 PM

That end option setting is frustrating. I get its reason, but it sure causes headaches at times....I set the end to 0" and have at it.

Wall joins are similar.


Jeremy Plum

Plum Design & Construction


#5 Kris Marteinsson

Kris Marteinsson

    Member

  • Members
  • PipPip
  • 21 posts
  • LocationSalmon Arm, BC

Posted 12 January 2022 - 12:54 PM

0" works nicely from a display point of view but gives an incorrect length for a cut list. It is only a mild pain to add up the wall thicknesses to get the correct projection. I think this is a typical case of the programmers doing something which appeals to them rather than addressing the real situation.  I'm not taking a poke at the programmers. I have a lot of respect for them and how they are able to make this all work. A simple fix might be to allow the projection setting to be turned off.



#6 Bill Wimberley

Bill Wimberley

    Advanced Member

  • Members
  • PipPipPip
  • 239 posts
  • LocationSan Angelo, TX

Posted 12 January 2022 - 02:19 PM

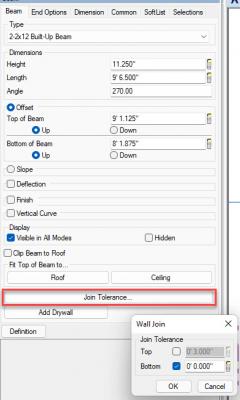

Try setting the Join Tolerance for that end of the beam to 0".


Attached Thumbnails

  • 2022-01-12_14-16-04.jpg


#7 Kris Marteinsson

Kris Marteinsson

    Member

  • Members
  • PipPip
  • 21 posts
  • LocationSalmon Arm, BC

Posted 12 January 2022 - 03:09 PM

Played around with that and that works also. So, two methods to get things to work as desired. Thanks.
