Dimension Font


  • Please log in to reply
9 replies to this topic

#1 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 22 January 2022 - 08:01 AM

In keeping with standards for the NYC Department of Buildings, all of my notes (any note or text appearing on the drawings) needs to be no smaller than 3/32" printed size, regardless of the sheet size on which the drawing is printed.
I changed all of the System Text fonts to Ariel Narrow, Italics, 4-1/2", as this prints at 3/32" when the drawing scale is 1/4"=1'.
I changed the Dimension Font to Ariel Narrow as well, 4-1/2".  I do not see an option for setting the dimension Font to Italic.  Did I just miss it in a setting, or cant the Dimension text (numbers) be Italic?



Thanks in advance.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#2 Jeremy Plum

Jeremy Plum

    Advanced Member

  • Members
  • PipPipPip
  • 104 posts

Posted 22 January 2022 - 11:10 AM

I think you are correct. I took a look at System and Project level options and nothing related to changing the numbers to â€‹italics.


Jeremy Plum

Plum Design & Construction


#3 David Zawadzki

David Zawadzki

    Advanced Member

  • Members
  • PipPipPip
  • 437 posts
  • LocationBoise, Idaho

Posted 22 January 2022 - 04:12 PM

Why would you want to make your dimensions to print in italics?  Is this a new government rule there?


Award winning Design+Builder with over 40 years of construction experience. Homes built in Michigan, Utah and Idaho.

Construction projects in CA, AZ, NV, ID, UT, NE, MO, NM, FL, GA, NY, and MI.

https://idahocustomhomes.weebly.com/

Twinmotion 2022, Autocad, SoftPlan 2022, Solidbuilder, Chief Architect X13, Sketchup, 3D Home Architect, etc.

CyberPowerPC Syber Forti SFG9EX Gaming Desktop Computer, Intel Core i9-9900K 3.6GHz, 32GB RAM, 3TB HDD + 1TB SSD, NVIDIA GeForce RTX 3070 10GB, Windows 10 Pro.

Disclaimer: I'm not saying I'm Superman. All I am saying is no one has seen Superman and me in the same room together.<p>

Softplan user since 1989


#4 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 26 January 2022 - 06:44 PM

Why would you want to make your dimensions to print in italics?  Is this a new government rule there?

To keep the dimension font the same as the text font.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#5 David Zawadzki

David Zawadzki

    Advanced Member

  • Members
  • PipPipPip
  • 437 posts
  • LocationBoise, Idaho

Posted 27 January 2022 - 02:27 PM

To keep the dimension font the same as the text font.

Do you think the foundation guys, framers and anyone else on the jobsite care? ;-)



One of the reasons I started designing our own plans was trying to hire someone who had a degree in hieroglyphics to interpret the plans we were getting from the local architects.  All my plans font are Arial... and all my crews love it!


  • Bill Wimberley likes this

Award winning Design+Builder with over 40 years of construction experience. Homes built in Michigan, Utah and Idaho.

Construction projects in CA, AZ, NV, ID, UT, NE, MO, NM, FL, GA, NY, and MI.

https://idahocustomhomes.weebly.com/

Twinmotion 2022, Autocad, SoftPlan 2022, Solidbuilder, Chief Architect X13, Sketchup, 3D Home Architect, etc.

CyberPowerPC Syber Forti SFG9EX Gaming Desktop Computer, Intel Core i9-9900K 3.6GHz, 32GB RAM, 3TB HDD + 1TB SSD, NVIDIA GeForce RTX 3070 10GB, Windows 10 Pro.

Disclaimer: I'm not saying I'm Superman. All I am saying is no one has seen Superman and me in the same room together.<p>

Softplan user since 1989


#6 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,818 posts
  • LocationBrockville, Ontario, Canada

Posted 27 January 2022 - 03:10 PM

Okay, I'm going to ask a stupid question ....



Why can't you set the dimension font to the same as the detail text font?



The font setting is exactly the same for EVERY character style.

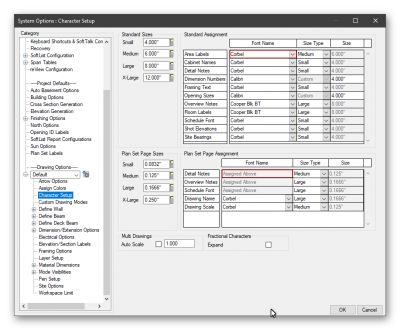

2022.01.27_16h06m15s_001_System Options - Character Setup.png



There is NO option to set the standard fonts to ITALICS ... so how did you do it?



If you're using an ITALIC font for standard text, why can't you use the same ITALIC font for dimensions.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#7 Bill Wimberley

Bill Wimberley

    Advanced Member

  • Members
  • PipPipPip
  • 262 posts
  • LocationSan Angelo, TX

Posted 27 January 2022 - 04:52 PM

I 100% agree David. Clarity over style. In the past I worked with someone who insisted we used SPEVAN font on all our plans. The big problem with SPEVAN is the kerning for the number 1. There is hardly any kerning at all so 11 looks like a thick 1 unless you look closely. It was always causing confusion. I use Arial exclusively now and there is never any complaints.


  • David Zawadzki likes this

#8 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 02 February 2022 - 08:04 AM

Okay, I'm going to ask a stupid question ....



Why can't you set the dimension font to the same as the detail text font?



The font setting is exactly the same for EVERY character style.



attachicon.gif 2022.01.27_16h06m15s_001_System Options - Character Setup.png



There is NO option to set the standard fonts to ITALICS ... so how did you do it?



If you're using an ITALIC font for standard text, why can't you use the same ITALIC font for dimensions.

The italics for notes can be set by editing the note, down where you can wrap the text, box it out etc.  No can do with dimensions.


Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#9 Lane De Muro

Lane De Muro

    Advanced Member

  • Members
  • PipPipPip
  • 46 posts
  • LocationNew York

Posted 02 February 2022 - 08:24 AM

Do you think the foundation guys, framers and anyone else on the jobsite care? ;-)



One of the reasons I started designing our own plans was trying to hire someone who had a degree in hieroglyphics to interpret the plans we were getting from the local architects.  All my plans font are Arial... and all my crews love it!

I use Ariel Narrow Italics for all text  to print @ 3/32" in 1/4"=1' when printed on Arch D paper.
I don't think anyone cares whether or not the dimension text matches the note texts, I only wanted to keep them both the same.



Lane De Muro



Windows 10 on a Dell something or other which works  but should be replaced.


#10 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,818 posts
  • LocationBrockville, Ontario, Canada

Posted 02 February 2022 - 08:47 AM

The italics for notes can be set by editing the note, down where you can wrap the text, box it out etc.  No can do with dimensions.



Yes, I'm aware you can do othat ... However, that's not "I changed all of the System Text fonts to Ariel Narrow, Italics" that you said in the first post. You've had to go into EVERY note and explicitly set it to italics. You haven't actually set the System text fonts to italics have you!


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca
