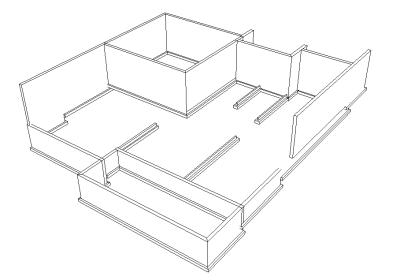

I like to give an axo view of the foundation so the concrete guy has a quick grasp of the wall heights. If I'm looking at a Visible Line view, I can do a save as - image. Both options produce an image with jagged lines. How do others get a reasonable Visible Line view to place on a sheet?

Attached Thumbnails

  • Foundation Axo.jpg
  • Foundation Axo Close Up.jpg


#2 ROBERT BROGAN

ROBERT BROGAN

    Advanced Member

  • Members
  • PipPipPip
  • 40 posts

Posted 10 July 2022 - 08:40 AM

change your anti-alias to highest number before you save the picture?



#3 Bill Wimberley

Bill Wimberley

    Advanced Member

  • Members
  • PipPipPip
  • 282 posts
  • LocationSan Angelo, TX

Posted 11 July 2022 - 07:33 AM

Visible Line views can be saved as drawings. File-->Save-->Save As-->SoftPlan Drawing
