ICF wall types

Insulated concrete forms wall types foundations

  • Please log in to reply
8 replies to this topic

#1 Sherman Hill

Sherman Hill

    Newbie

  • Members
  • Pip
  • 3 posts

Posted 06 January 2016 - 12:33 PM

Hi all - new here! wanna get going...I read once, not sure where, that ICF wall type was added in v12! I've got v14 and it's screwing up since install of Win10. Lots to iron out but now no support - Upgrade I guess BUT: How can I select, find - is there- an ICF foundation wall type? Cheers sah



#2 Martin Livingston

Martin Livingston

    Advanced Member

  • Members
  • PipPipPip
  • 668 posts
  • LocationHalifax, Nova Scotia

Posted 06 January 2016 - 12:50 PM

I have 2016 and it is one of the standard wall types.

Attached Thumbnails

  • ICF.png

Five out of four people are not very good with fractions

www.cresco.ca


#3 Sherman Hill

Sherman Hill

    Newbie

  • Members
  • Pip
  • 3 posts

Posted 06 January 2016 - 01:30 PM

Thanks Martin, I'll consider the upgrade and more training ...

but still don't know why ICF is not on my system??



#4 Doug Morell

Doug Morell

    Advanced Member

  • Members
  • PipPipPip
  • 393 posts
  • Location..

Posted 06 January 2016 - 02:35 PM

It should be there, .. I checked my 2014 (see attached) and there's on ICF Wall Type (to start you off, I guess)



If you don't have it, .. you can create one, ..



Rigid Insulation .. Concrete .. Rigid Insulation, .. thickness of Rigid to suit the Manufacturer (they do vary) and thickness of concrete as is available (8", 10", .. ).



Doug


.. invariably, someone will have a simpler solution.


#5 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,600 posts
  • LocationBrockville, Ontario, Canada

Posted 06 January 2016 - 03:21 PM

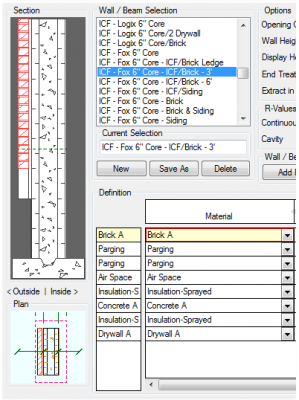

NONE of my walls are standard. I created each one independently (including the ICF ones),- that way I know they show what I want to show, and the pens are defined and print as I want them. If you use a profile, then you can even make a brick ledge taper top to suit.



2015.06.26_20h53m05s_009.png 2015.06.26_20h56m41s_010.png



2015.06.26_20h59m56s_011.png 2016.01.06_16h26m10s_001.png


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#6 Sherman Hill

Sherman Hill

    Newbie

  • Members
  • Pip
  • 3 posts

Posted 06 January 2016 - 03:52 PM

Thank you guys  :P

Douglas, my wall type selection does not include the ICF models (conc core) ...



and to Keith, I think it is best now to generate them as need be - however, I'm one of those 10 who doesn't do binary well :)

Just ordered my upgrade to 2016 - here's hoping!



I just got off the table where I have been (and will continue to..) drawing for 38 years. It seems no-one else around here does it by hand any more - a lost art for sure...

I'll have to stop by and visit Home Hardware - one of my fav's



As I'm new to this site and program, I'll be watching keenly - thanks!

/sah



#7 CHRIS STILLER

CHRIS STILLER

    Newbie

  • Members
  • Pip
  • 2 posts

Posted 29 April 2021 - 09:51 AM

Keith Almond,



How did you create taper top and brick ledge icf blocks?



#8 Gary Wicklund

Gary Wicklund

    Advanced Member

  • Members
  • PipPipPip
  • 80 posts
  • LocationDuncan BC Canada

Posted 01 May 2021 - 08:01 AM

Easy to make a custom wall, lots of material options available



Tricky part is what you make bearing for dimensions and stacking etc



#9 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,600 posts
  • LocationBrockville, Ontario, Canada

Posted 01 May 2021 - 09:23 AM

Sorry.



Didn't get to reply earlier. The taper top doesn't actually do anything in the 3D model, so you don't actually need to do anything.

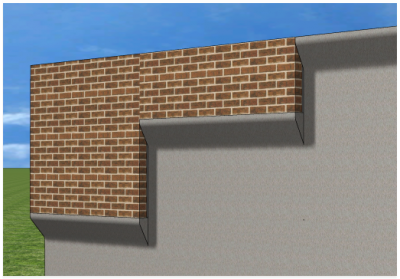

The brick ledge is just created with a profile. Just create a material at the right height and add a profile to it ... For example: Create a profile exactly the size of the brick ledge, then add a material (I used Parging as you can see) to the wall definition exactly the same size as the profile, then add the profile to that part of the definition.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca
