I am creating a cabinet elevation sheet in my plan set.  To keep the drawing live I drag the interior elevation view into the sheet and then add my notes on the sheet itself.  However when I do this the interiors have a lighter line than my notes or tiles.  Is there a way to get the interior views so show darker line weights?

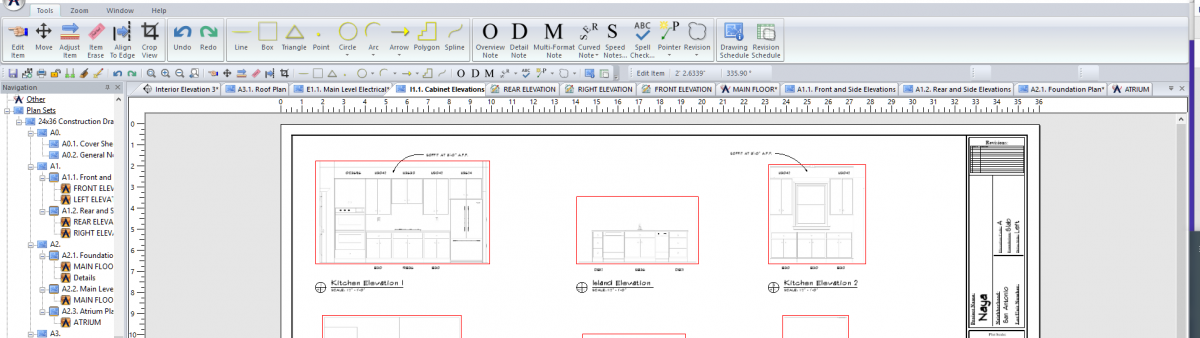

Screenshot (21).png

Attached File  Interior elevation.pdf   507.78KB   124 downloads



I have looked at my pen setup and the weight for notes, cabinets are all showing the same weight



Screenshot (22).png






"remember... what we are building today, should be what we want in the future"​
Version 10 to Version 2024+ and beyond
www.residentialproductions.com






#2 Matthew Baugher

Matthew Baugher

    Advanced Member

  • Members
  • PipPipPip
  • 77 posts
  • LocationPennsylvania

Posted 13 November 2024 - 01:37 PM

Hey, Tom. Did you ever figure anything out with this?

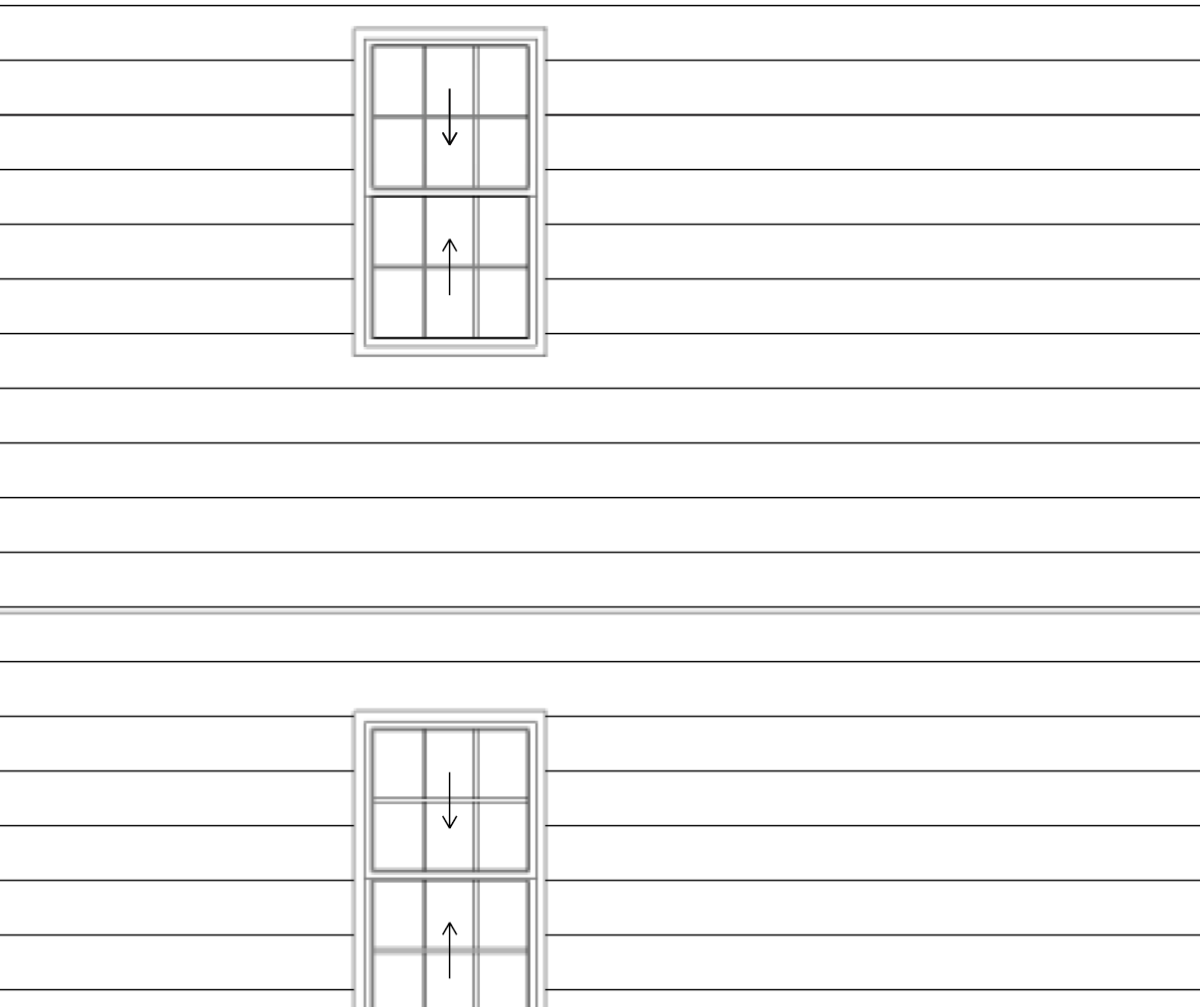

I'm having a similar problem with my elevation and cross-section views in my plan sets--the lines show up grainy, and I'd like to know how to make them sharper--and black.

Attached Thumbnails

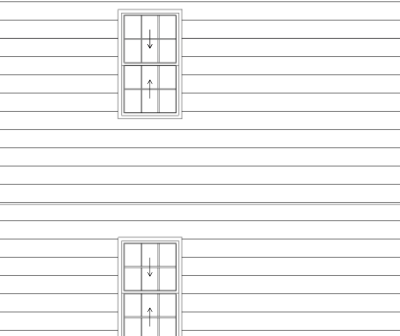

  • Screenshot 2024-11-13 115027.png
