Pitched parallelogram window

window

  • Please log in to reply
13 replies to this topic

#1 Brian Ficek

Brian Ficek

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts
  • LocationBismarck, ND 58501

Posted 05 June 2018 - 10:16 AM

Just wondering if anyone has ever done one of these windows in Softplan.

Attached Thumbnails

  • tn_casement_fixed_vent_pitched_prallelogram.jpg

Fine Line Drafting & Design
Brian Ficek
215 Airport Road
Bismarck, ND 58501
701.595.1696
www.facebook.com/FineLineDrafting.Bismarck.nd
www.fineline-drafting.com

SoftPlan user since version 9 (2003)
Current SoftPlan - SoftPlan+ 2018
AutoCAD user since R12 (1992)
Current AutoCAD - AutoCAD 2019 LT

#2 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 05 June 2018 - 05:30 PM

I've never used them, but what is the issue Brian. They're easy enough to create.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#3 Brian Ficek

Brian Ficek

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts
  • LocationBismarck, ND 58501

Posted 06 June 2018 - 02:10 PM

I have created



I've never used them, but what is the issue Brian. They're easy enough to create.

I have created standard windows before but not a angled parallel one.  How would you go about that?


Fine Line Drafting & Design
Brian Ficek
215 Airport Road
Bismarck, ND 58501
701.595.1696
www.facebook.com/FineLineDrafting.Bismarck.nd
www.fineline-drafting.com

SoftPlan user since version 9 (2003)
Current SoftPlan - SoftPlan+ 2018
AutoCAD user since R12 (1992)
Current AutoCAD - AutoCAD 2019 LT

#4 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 06 June 2018 - 05:59 PM

Okay, quick tutorial:



1. Draw the required window with lines - to your own requirements - Add lines for FRAME, SASH & BEAD, and make sure all the corner joins are filleted properly.






2. IMPORTANT - Add glazing - Draw with dotted lines (Softplan understands that in this context, the dotted lines represent glass).

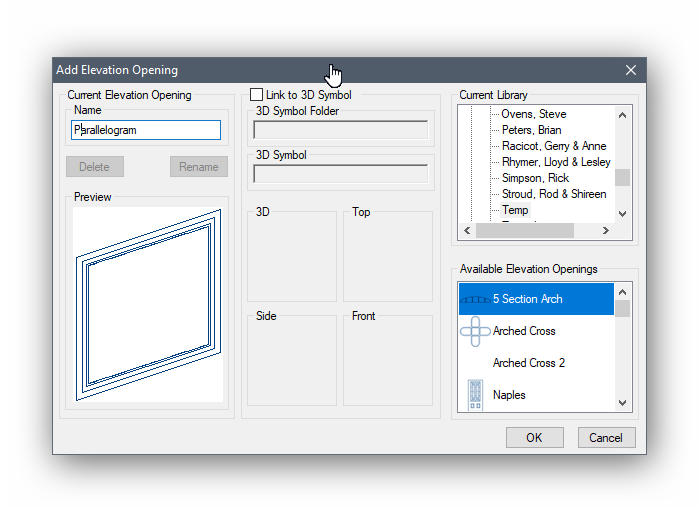

3.Go to FILE > SYSTEM OPTIONS > SYSTEM LIBRARY - Choose Library Type as ELEVATION OPENINGS > Select required Library - Click ONE STEP and draw a box around the window you have just drawn > OK



2018.06.06_19h42m33s_002_Add Elevation Opening.png

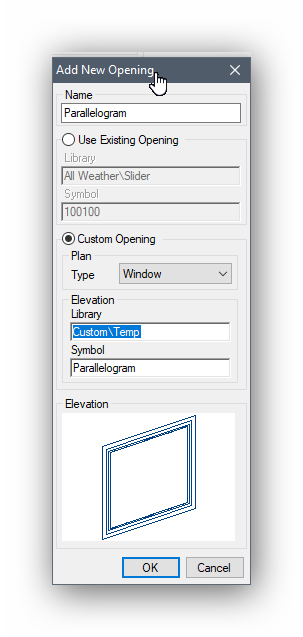

4. Change the library to OPENINGS - Again Select the required Library - Click ONE STEP - Name the Opening - Click Custom Opening Radio Button - Type (in this case) WINDOW - and select the library and window that you saved in Step 3 - OK



2018.06.06_19h46m55s_003_Add New Opening.png



5. CONFIGURE OPENING - EDIT INDIVIDUAL COMPONENT and (again in this case) on the ELEVATION TAB change SILL TYPE to NONE - OK - OK - OK



2018.06.06_19h49m05s_004_Opening Component.png



6. Go to your opening library, select the just constructed window and Insert into plan wall ...






7. View model - Add trim as necessary






And if everything worked properly, you should have a new window you can use anytime.



ANY size and configuration of window can be created this way. If you require glazing bars, add single lines within the glazing area, and again Softplan will understand that they are grilles.


  • Brian Ficek and Heath Foster like this
Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#5 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 06 June 2018 - 06:21 PM

There are four basic methods to create custom windows, ranging to VERY simple to the method above.



METHOD ONE:

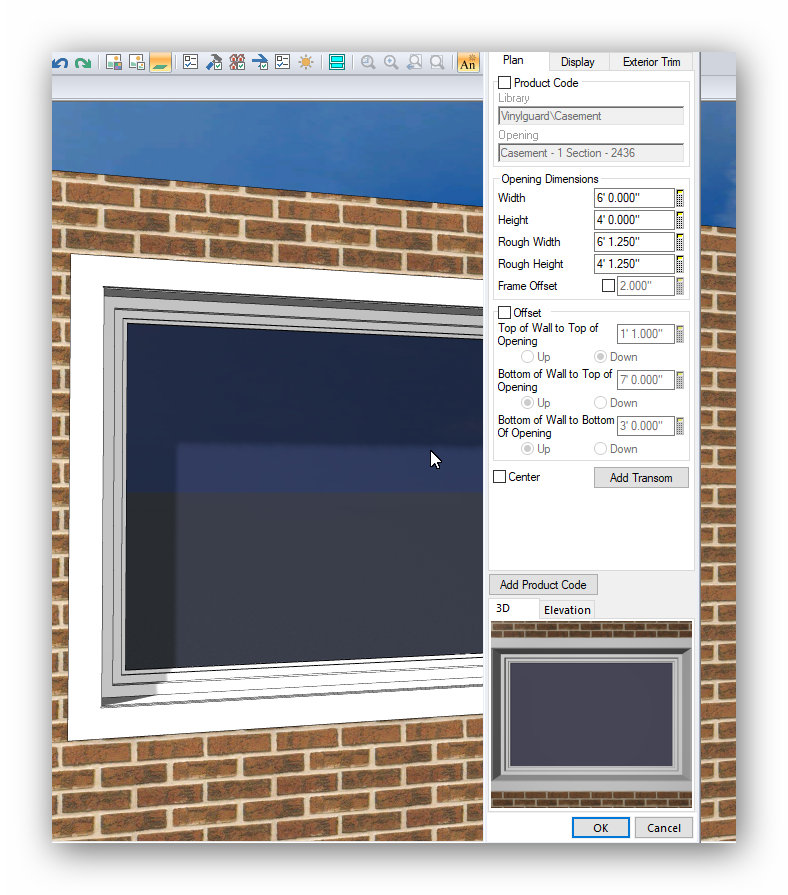

Add a window similar to the one that you require on the plan - UNCHECK - PRODUCT CODE and EDIT ITEMS as required.






SIze:






Number of Sections:






Deflection:






etc. etc. It may be simple but it's still a custom window



When everything is how you want it CLICK Add Product Code, and save your custom window for posterity.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#6 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 06 June 2018 - 06:30 PM

METHOD TWO:



Stack individual windows NEXT TO EACH OTHER and ABOVE EACH OTHER AS REQUIRED.



EDIT > UNIT OPENINGS












And again ... Give the resulting opening a PRODUCT CODE and save for posterity.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#7 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 06 June 2018 - 06:59 PM

METHOD THREE:



Add a basic window ... EDIT > ADD PRODUCT CODE and give it a Product Code that reflects the final configuration.





Go to FILE > DRAWING OPTIONS > DRAWING LIBRARY and select the product you just created ... EDIT SYMBOL ... ADD ... SELECT and OPENING and locate it and configure it to suit.... and carry on adding until satisfied ... EDIT INDIVIDUAL COMPONENTS to make each section what you want/need. You can edit each component for sections, grilles, deflection etc. etc.

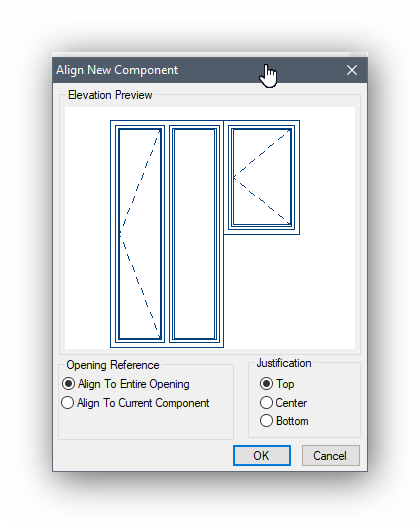

2018.06.06_20h37m05s_019_Align New Component.png



2018.06.06_20h47m27s_020_Configure Opening.png



OK - OK - OK



Add new PRODUCT to drawing.









This is quite powerful and can create very complex windows quite quickly ... They can also be edited easily in the drawing library.



NOTE: As mentioned in another window tutorial a long time ago,



A custom window that includes concave areas will NOT trim properly. The trim will not follow any concave area ... However, as long as a custom window doesn't have a concave area, it can be assembled with other windows that don't contain concave areas, EVEN IF THE ASSEMBLY CONTAINS CONCAVE AREAS, and the trim will follow the ASSEMBLY correctly.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#8 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 06 June 2018 - 07:07 PM

METHOD FOUR:



Method Four is the COMPLETE CUSTOM creation, used to create the Parallelogram window in POST #4 above:



Method one is obviously the easiest, but each method has pro's and cons. Some items can only be created one way, others can be done whichever way you find easiest.



Any questions, feel free to ask ...


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#9 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 07 June 2018 - 05:56 PM

If anyone from Softplan is reading this ... I'd just like to reiterate that it would be nice if you could save a PRODUCT CODE opening to either the SYSTEM LIBRARY or the DRAWING LIBRARY, as I have created a lot of custom windows that I'll never use again, when drawing up existing buildings. I'd rather they didn't clutter up the SYSTEM LIBRARY.


Keith

There are 10 types of people in this world ....... Those who understand binary, and those who don't.

Softplan user since version 5.5.2.5

www.homehardwarekingston.ca

#10 Philip Frank

Philip Frank

    Advanced Member

  • Members
  • PipPipPip
  • 501 posts
  • LocationMaine, USA

Posted 08 June 2018 - 05:46 AM

I agree!



#11 Yvon Gonthier

Yvon Gonthier

    Advanced Member

  • Members
  • PipPipPip
  • 1,288 posts
  • LocationOttawa

Posted 08 June 2018 - 06:24 AM

I agree. Also that you can create openings such as doors with side lites and/or transoms and not need to have one for right opening and another for left.



#12 Brian Ficek

Brian Ficek

    Advanced Member

  • Members
  • PipPipPip
  • 57 posts
  • LocationBismarck, ND 58501

Posted 20 June 2018 - 07:45 AM

Okay, quick tutorial:



1. Draw the required window with lines - to your own requirements - Add lines for FRAME, SASH & BEAD, and make sure all the corner joins are filleted properly.



attachicon.gif 2018.06.06_19h35m44s_001_.png



2. IMPORTANT - Add glazing - Draw with dotted lines (Softplan understands that in this context, the dotted lines represent glass).



3.Go to FILE > SYSTEM OPTIONS > SYSTEM LIBRARY - Choose Library Type as ELEVATION OPENINGS > Select required Library - Click ONE STEP and draw a box around the window you have just drawn > OK



attachicon.gif 2018.06.06_19h42m33s_002_Add Elevation Opening.png



4. Change the library to OPENINGS - Again Select the required Library - Click ONE STEP - Name the Opening - Click Custom Opening Radio Button - Type (in this case) WINDOW - and select the library and window that you saved in Step 3 - OK



attachicon.gif 2018.06.06_19h46m55s_003_Add New Opening.png



5. CONFIGURE OPENING - EDIT INDIVIDUAL COMPONENT and (again in this case) on the ELEVATION TAB change SILL TYPE to NONE - OK - OK - OK



attachicon.gif 2018.06.06_19h49m05s_004_Opening Component.png



6. Go to your opening library, select the just constructed window and Insert into plan wall ...



attachicon.gif 2018.06.06_19h51m38s_005_.png



7. View model - Add trim as necessary



attachicon.gif 2018.06.06_19h55m45s_007_.png



And if everything worked properly, you should have a new window you can use anytime.



ANY size and configuration of window can be created this way. If you require glazing bars, add single lines within the glazing area, and again Softplan will understand that they are grilles.





Thank you!


Fine Line Drafting & Design
Brian Ficek
215 Airport Road
Bismarck, ND 58501
701.595.1696
www.facebook.com/FineLineDrafting.Bismarck.nd
www.fineline-drafting.com

SoftPlan user since version 9 (2003)
Current SoftPlan - SoftPlan+ 2018
AutoCAD user since R12 (1992)
Current AutoCAD - AutoCAD 2019 LT

#13 Chris Robinson

Chris Robinson

    Advanced Member

  • Members
  • PipPipPip
  • 61 posts
  • LocationKelowna, B.C. Canada

Posted 28 November 2021 - 01:31 AM

This is awesome Keith. I need to save this post. Thank you for taking some much time to explain this. I am sure you had better things to do!



#14 Keith Almond

Keith Almond

    Advanced Member

  • Members
  • PipPipPip
  • 4,648 posts
  • LocationBrockville, Ontario, Canada

Posted 28 November 2021 - 12:20 PM

Glad to be of assistance.
